ATA8710-GHQW - Microchip

Description: RF Microcontrollers - MCU ISM subGHz Transmitter, with 20K user FLASH

Download ATA8710-GHQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

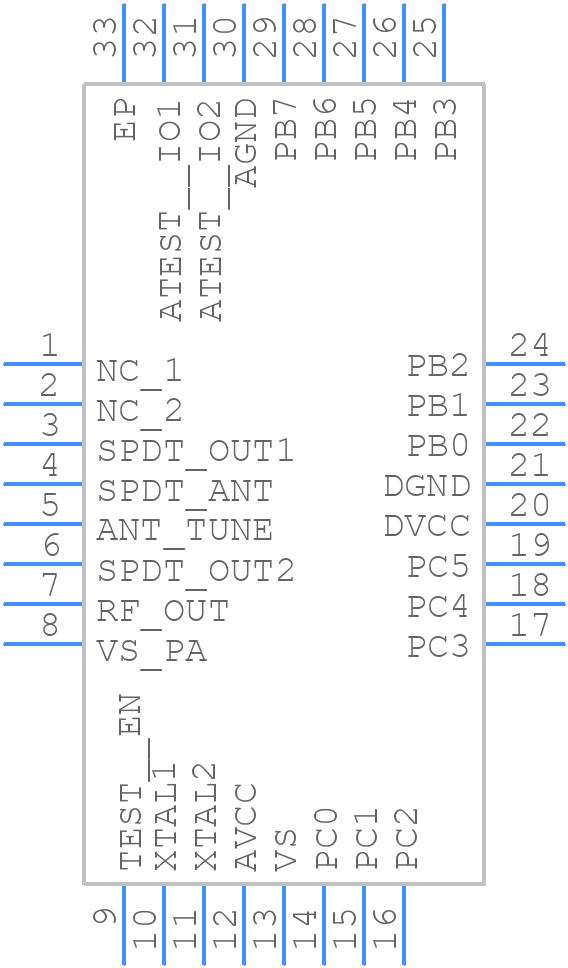

ATA8710-GHQW - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA8710-GHQW - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32_2025
click to zoom
3D Models
ATA8710-GHQW - Microchip - 3D model - Quad Flat No-Lead - QFN32_2025
click to zoom

ATA8710-GHQW Details

  • Manufacturer Part Number:

    ATA8710-GHQW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Data Rate:

    80 Mbps

  • JESD-30 Code:

    S-XQCC-N32

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • Package Shape:

    SQUARE

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

ATA8710-GHQW Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATA8710-GHQW evaluation board documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ATA8710-GHQW supports multiple frequency bands, and configuration is done through the SPI interface. Refer to the datasheet and application notes for specific register settings and configuration examples for different frequency bands.
  • The maximum transmit power of the ATA8710-GHQW is +20 dBm. The transmit power can be adjusted through the SPI interface by setting the appropriate register values. Refer to the datasheet and application notes for more information.
  • The ATA8710-GHQW supports antenna diversity, which can be implemented using external switches and antennas. Microchip provides application notes and design guidelines for implementing antenna diversity with the device.
  • The ATA8710-GHQW has several power-saving modes, including sleep mode, standby mode, and shutdown mode. These modes can be configured through the SPI interface to reduce power consumption and extend battery life.
