ATA8742C-PXQW-1 - Microchip

Description: RF XMITTER UHF 429-439MHZ 24VQFN

Download ATA8742C-PXQW-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

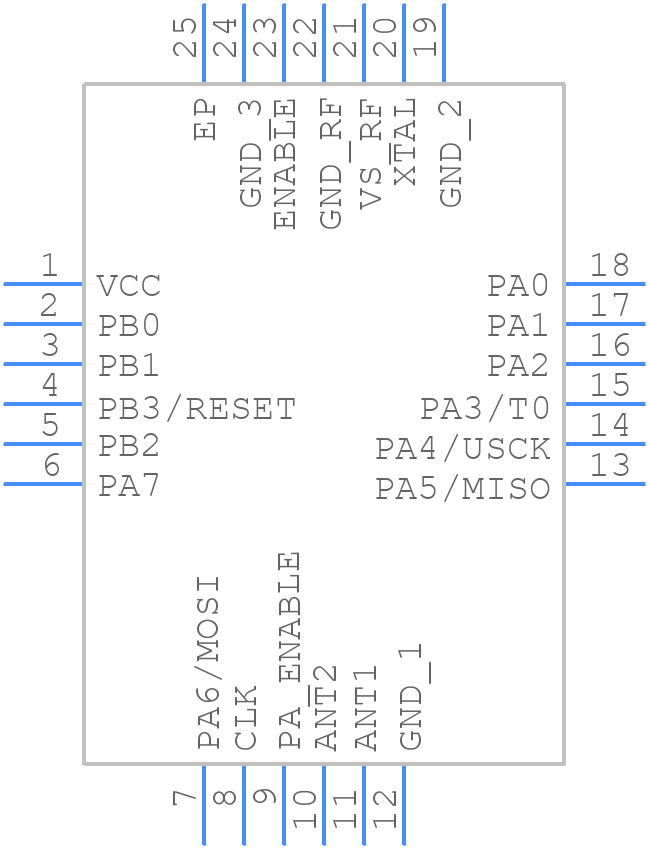

Symbol
ATA8742C-PXQW-1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA8742C-PXQW-1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 5mm x 5mm
click to zoom
3D Models
ATA8742C-PXQW-1 - Microchip - 3D model - Quad Flat No-Lead - QFN24 5mm x 5mm
click to zoom

ATA8742C-PXQW-1 Details

  • Manufacturer Part Number:

    ATA8742C-PXQW-1

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7.2

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES FOR 1.8V MIN AT 4MHZ

  • Bit Size:

    8

  • Clock Frequency-Max:

    10 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    5 mm

  • Number of I/O Lines:

    12

  • Number of Terminals:

    24

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.9 mm

  • Speed:

    8 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

ATA8742C-PXQW-1 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATA8742C datasheet, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm impedance matching for the RF ports.
  • The ATA8742C-PXQW-1 is a highly configurable device. You can configure it for different frequency bands using the SPI interface to program the registers. Refer to the datasheet and application notes for specific configuration details.
  • The ATA8742C-PXQW-1 can handle up to 30 dBm (1 W) of output power. However, it's essential to ensure proper thermal management and heat sinking to prevent overheating and damage to the device.
  • Microchip provides a range of tools and resources, including the MPLAB X IDE, to help troubleshoot issues with the ATA8742C-PXQW-1. You can also use oscilloscopes and spectrum analyzers to debug RF signals and identify issues.
  • Yes, the ATA8742C-PXQW-1 is designed to work seamlessly with other Microchip devices, such as microcontrollers and transceivers. You can use Microchip's development boards and evaluation kits to simplify the design process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATA8742C-PXQW-1 Overview

Use the download button to access the ATA8742C-PXQW-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA87, or try a keyword search, such as Microcontrollers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
