ATA8743C-PXQW-1 - Microchip

Description: RF Microcontrollers - MCU Embedded C incl RF Tx for 868 MHz with UHF ASK/FSK Transmitter

Download ATA8743C-PXQW-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

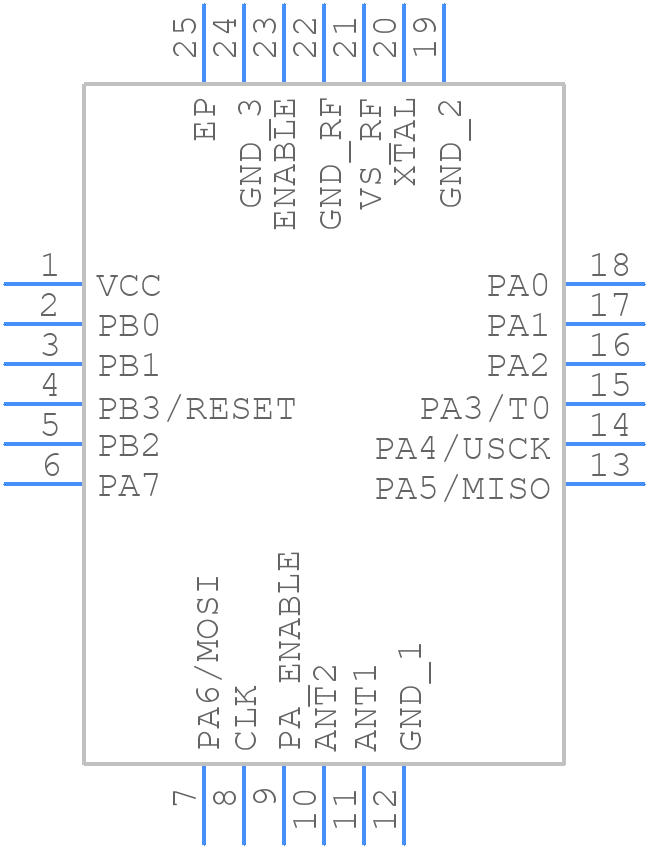

ATA8743C-PXQW-1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA8743C-PXQW-1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 5mm × 5mm
click to zoom
3D Models
ATA8743C-PXQW-1 - Microchip - 3D model - Quad Flat No-Lead - QFN24 5mm × 5mm
click to zoom

ATA8743C-PXQW-1 Details

  • Manufacturer Part Number:

    ATA8743C-PXQW-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5 X 5 MM, 0.65 MM PITCH, VQFN-24

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPEARTES IN 4MHZ AT 1.8V MIN SUPPLY

  • Bit Size:

    8

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of I/O Lines:

    12

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Speed:

    8 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

ATA8743C-PXQW-1 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATA8743C-PXQW-1 evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ATA8743C-PXQW-1 is a highly configurable device, and the frequency band configuration depends on the specific application. Engineers can refer to the device's programming guide and use Microchip's configuration tools, such as the ATA8743C-PXQW-1 Configuration Tool, to set the desired frequency band and other parameters.
  • The ATA8743C-PXQW-1 is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in harsh environments. However, the device's performance and reliability may be affected at extreme temperatures, and engineers should consult the datasheet and application notes for specific guidance.
  • Microchip provides a range of resources to help engineers troubleshoot issues with the ATA8743C-PXQW-1, including application notes, FAQs, and a dedicated support forum. Engineers can also use debugging tools, such as logic analyzers and oscilloscopes, to identify and resolve issues.
  • The ATA8743C-PXQW-1 is a highly flexible and configurable device that can be used in a variety of applications, including those that require compliance with specific industry standards or protocols. Engineers should consult the datasheet and application notes to determine the device's compatibility with specific standards or protocols.
