ATB2012E-50012M-T01 - TDK

Description: Signal Conditioning 0.5ohms 150mA 20VDC Wound Chip Balun

Download ATB2012E-50012M-T01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

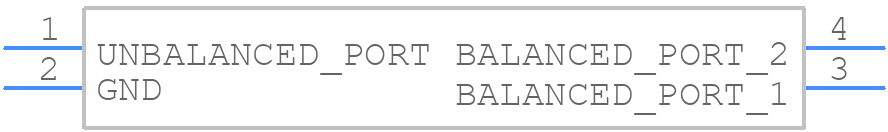

ATB2012E-50012M-T01 - TDK - PCB symbol
click to zoom
PCB Footprints
ATB2012E-50012M-T01 - TDK PCB footprint - Other - Other - ATB2012E-50012M-T01-1
click to zoom
3D Models
ATB2012E-50012M-T01 - TDK - 3D model - Other - ATB2012E-50012M-T01-1
click to zoom

ATB2012E-50012M-T01 Details

  • Manufacturer Part Number:

    ATB2012E-50012M-T01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Cut-off Frequency-Min:

    400 MHz

  • Height:

    1 mm

  • Input Voltage-Nom:

    20 V

  • Insertion Loss:

    2.5 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.2 mm

ATB2012E-50012M-T01 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ATB2012E-50012M-T01 can be found in the TDK Corporation's application note or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
  • Handle the ATB2012E-50012M-T01 by the edges to prevent damage to the component. Avoid touching the component's leads or body to prevent electrostatic discharge (ESD) damage. Use an anti-static wrist strap or mat to discharge static electricity.
  • The maximum storage temperature for the ATB2012E-50012M-T01 is 40°C (104°F) according to the datasheet. Storing the component above this temperature may affect its reliability and performance.
  • The ATB2012E-50012M-T01 is designed to withstand moderate vibration. However, it is essential to evaluate the component's performance in a high-vibration environment through rigorous testing and simulation. Consult with TDK Corporation's application engineers for guidance on using the component in high-vibration applications.
  • Use a soldering iron with a temperature of 250°C (482°F) to 270°C (518°F) and a solder with a melting point of 217°C (423°F) to 221°C (430°F). Apply a small amount of solder to the component's leads and the PCB pads. Avoid overheating the component or the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATB2012E-50012M-T01 Overview

Use the download button to access the ATB2012E-50012M-T01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATB20, or try a keyword search, such as RF Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
