ATF1502AS-10AU44 - Microchip

ATF1502AS-10AU44 Details

• Manufacturer Part Number:

  ATF1502AS-10AU44

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

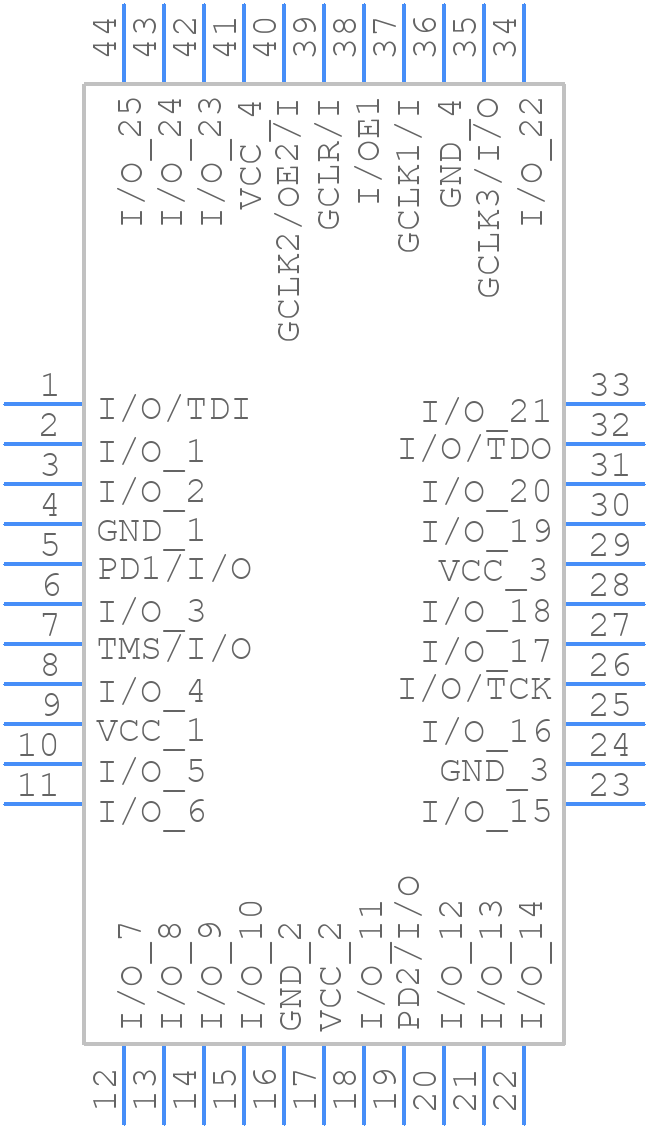

• Pin Count:

  44

• Manufacturer Package Code:

  TQFP-44

• Country Of Origin:

  Taiwan, Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  6 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  83.33 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e3

• JTAG BST:

  YES

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of Dedicated Inputs:

  4

• Number of I/O Lines:

  32

• Number of Inputs:

  36

• Number of Macro Cells:

  32

• Number of Outputs:

  32

• Number of Product Terms:

  40

• Number of Terminals:

  44

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  4 DEDICATED INPUTS, 32 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  TQFP44,.47SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  10 ns

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

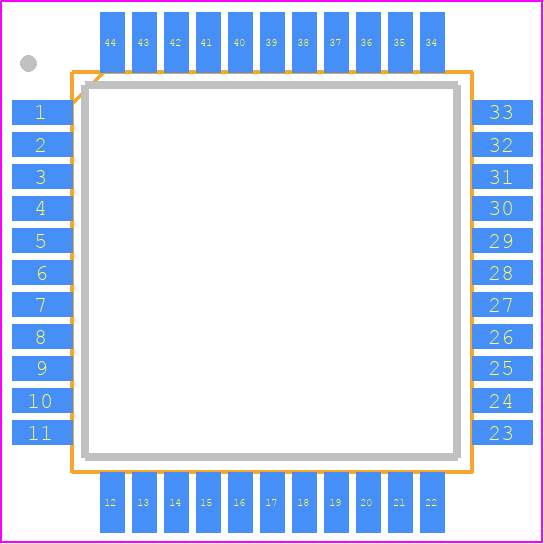

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  10 mm
