ATF1502AS-7JX44 - Microchip

Description: CPLD ATF1500 Family 750 Gates 32 Macro Cells 125MHz 5V 44-Pin PLCC Tube

Download ATF1502AS-7JX44 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

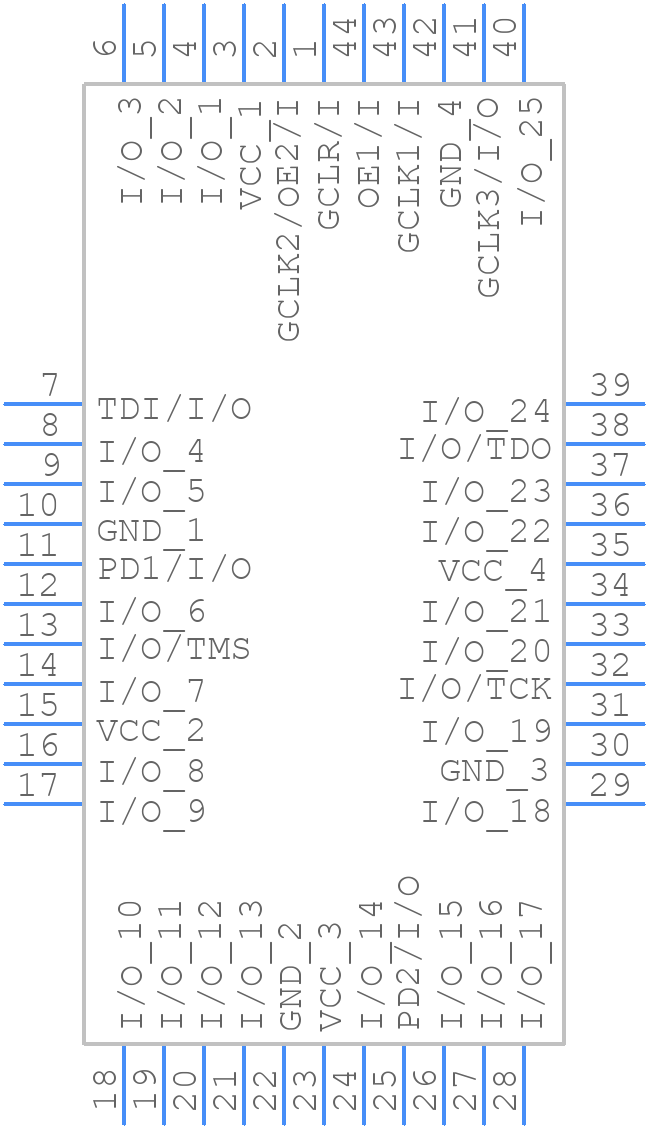

ATF1502AS-7JX44 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATF1502AS-7JX44 - Microchip PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 44J - PLCC
click to zoom
3D Models
ATF1502AS-7JX44 - Microchip - 3D model - Plastic Leaded Chip Carrier - 44J - PLCC
click to zoom

ATF1502AS-7JX44 Details

  • Manufacturer Part Number:

    ATF1502AS-7JX44

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    44

  • Manufacturer Package Code:

    PLCC-44

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Architecture:

    PAL-TYPE

  • Clock Frequency-Max:

    95.23 MHz

  • In-System Programmable:

    YES

  • JESD-30 Code:

    S-PQCC-J44

  • JESD-609 Code:

    e3

  • JTAG BST:

    YES

  • Length:

    16.586 mm

  • Moisture Sensitivity Level:

    3

  • Number of Dedicated Inputs:

    4

  • Number of I/O Lines:

    32

  • Number of Inputs:

    36

  • Number of Macro Cells:

    32

  • Number of Outputs:

    32

  • Number of Product Terms:

    40

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Organization:

    4 DEDICATED INPUTS, 32 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    7.5 ns

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    16.586 mm

ATF1502AS-7JX44 Frequently Asked Questions (FAQs)

  • The recommended programming voltage for the ATF1502AS-7JX44 is 12.5V, as specified in the datasheet. However, it's essential to note that the device can be programmed at a lower voltage, but the programming time may increase.
  • To ensure reliable programming of the ATF1502AS-7JX44, it's crucial to follow the recommended programming algorithm, use a high-quality programming tool, and maintain a stable power supply. Additionally, ensure that the device is properly erased before programming, and verify the programming results to detect any errors.
  • The maximum operating frequency of the ATF1502AS-7JX44 is 150 MHz, as specified in the datasheet. However, the actual operating frequency may be limited by the system design, clock signal quality, and other factors.
  • When handling the ATF1502AS-7JX44's power-up and power-down sequences, ensure that the power supply is stable and monotonic. Avoid sudden power changes, and follow the recommended power-up and power-down sequences outlined in the datasheet to prevent damage or malfunction.
  • The ATF1502AS-7JX44 has a maximum junction temperature of 150°C. Ensure that the device is operated within the recommended temperature range, and provide adequate heat dissipation mechanisms, such as heat sinks or thermal interfaces, to prevent overheating.
