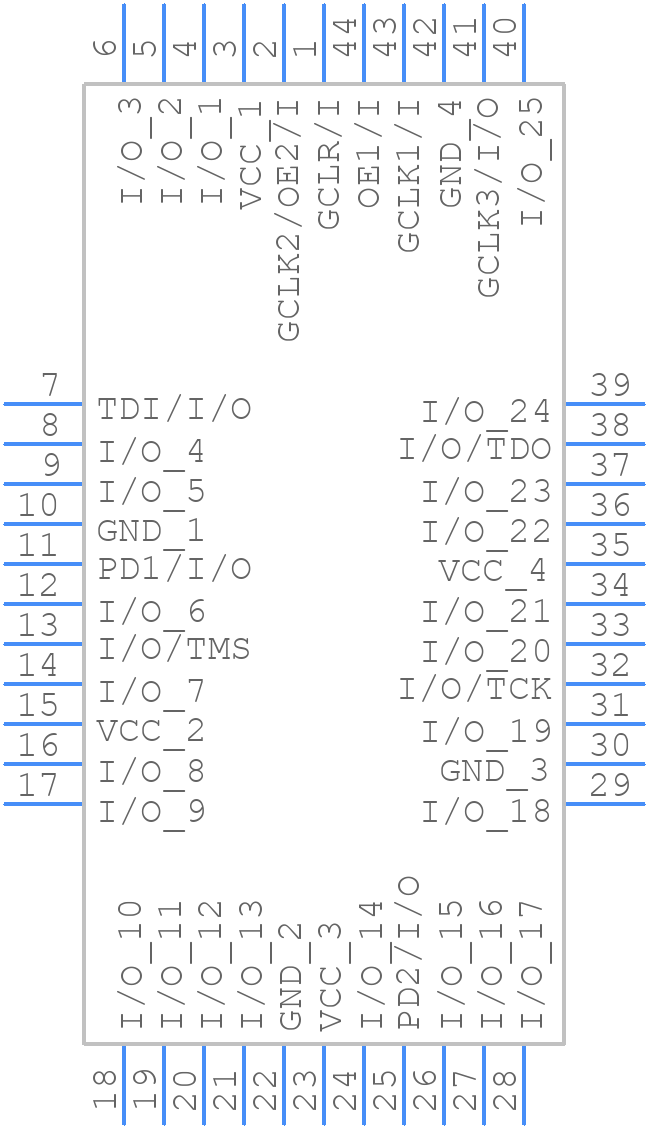

ATF1502ASL-25JU44 - Microchip

ATF1502ASL-25JU44 Details

• Manufacturer Part Number:

  ATF1502ASL-25JU44

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  44

• Manufacturer Package Code:

  PLCC-44

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  30.3 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• JTAG BST:

  YES

• Length:

  16.586 mm

• Moisture Sensitivity Level:

  3

• Number of Dedicated Inputs:

  4

• Number of I/O Lines:

  32

• Number of Inputs:

  36

• Number of Macro Cells:

  32

• Number of Outputs:

  32

• Number of Product Terms:

  40

• Number of Terminals:

  44

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  4 DEDICATED INPUTS, 32 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  245

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  25 ns

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  16.586 mm
