ATF1508AS-10JU84 - Microchip

ATF1508AS-10JU84 Details

• Manufacturer Part Number:

  ATF1508AS-10JU84

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Pin Count:

  84

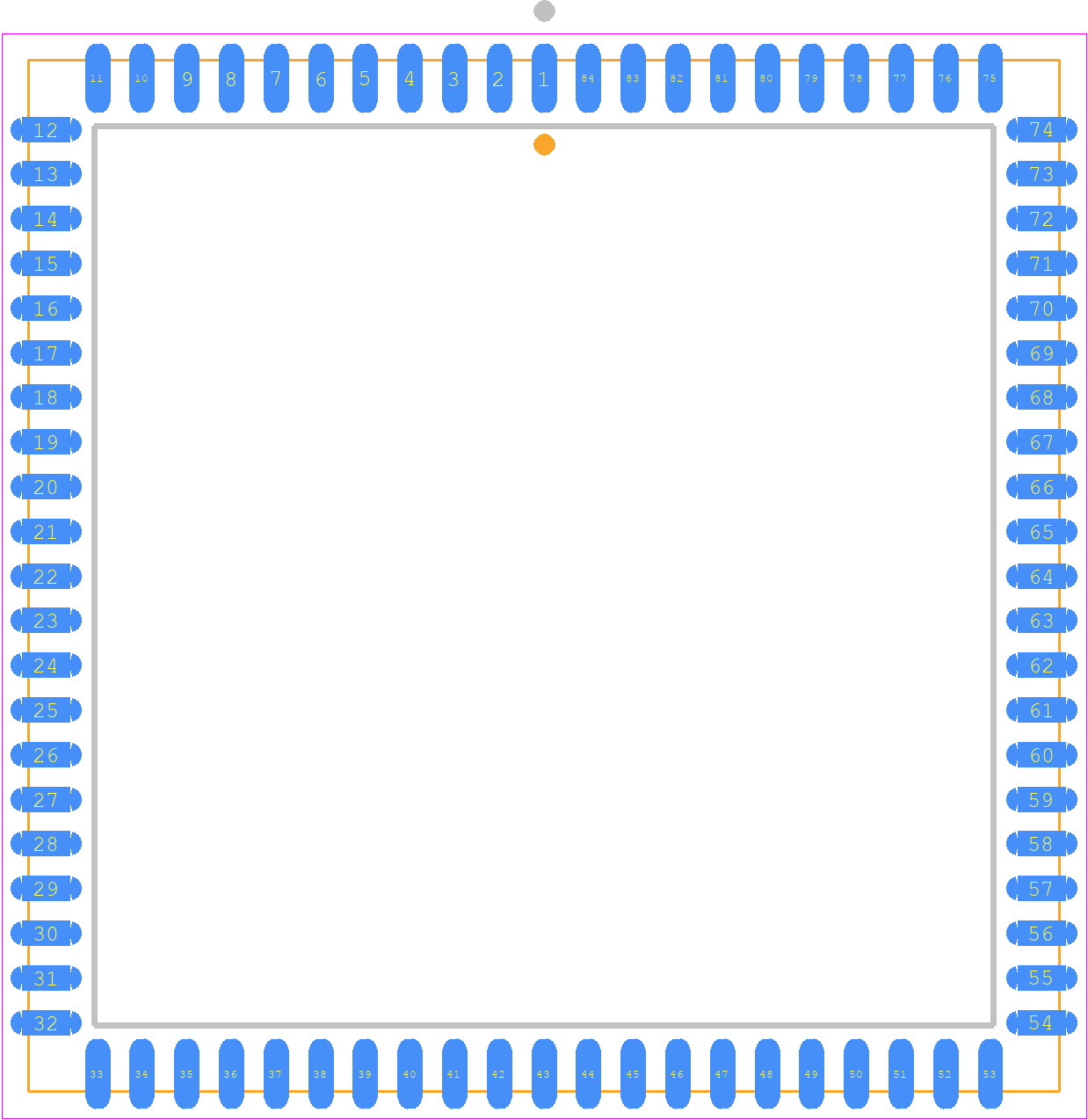

• Manufacturer Package Code:

  PLCC-84

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Additional Feature:

  YES

• Clock Frequency-Max:

  125 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQCC-J84

• JESD-609 Code:

  e3

• JTAG BST:

  YES

• Length:

  29.3115 mm

• Moisture Sensitivity Level:

  2

• Number of I/O Lines:

  64

• Number of Inputs:

  68

• Number of Macro Cells:

  128

• Number of Outputs:

  64

• Number of Terminals:

  84

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  0 DEDICATED INPUTS, 64 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC84,1.2SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Packing Method:

  TUBE

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  10 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  29.3115 mm
