ATF1508AS-10QU100 - Microchip

ATF1508AS-10QU100 Details

• Manufacturer Part Number:

  ATF1508AS-10QU100

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  100

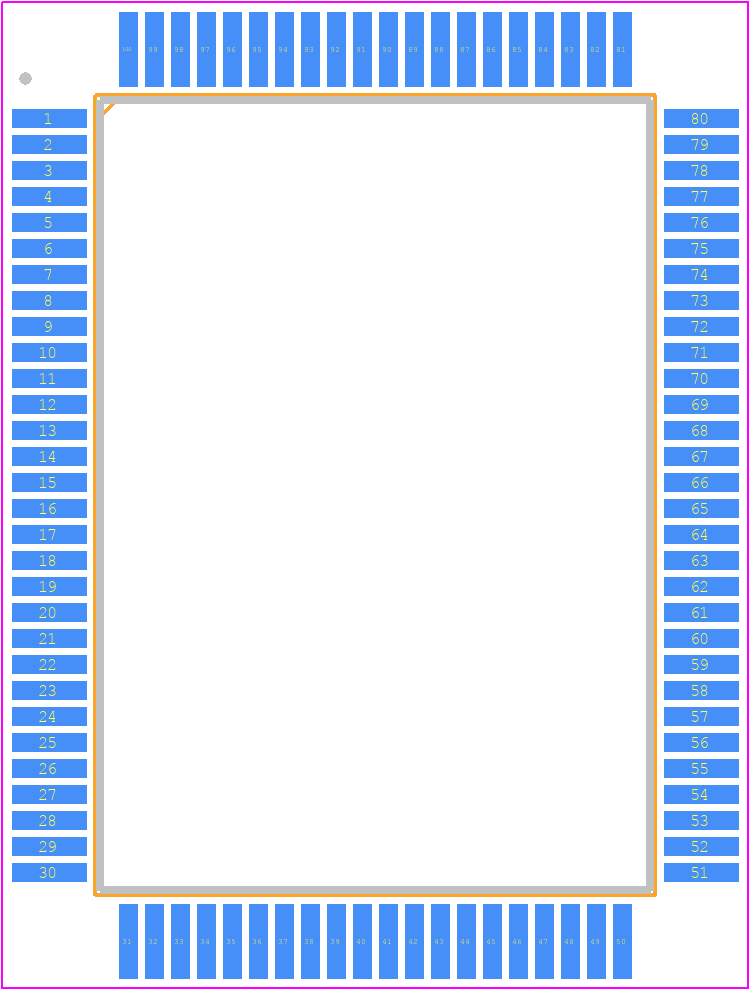

• Manufacturer Package Code:

  PQFP-100

• Country Of Origin:

  Philippines, Taiwan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Additional Feature:

  YES

• Clock Frequency-Max:

  125 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e3

• JTAG BST:

  YES

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  80

• Number of Inputs:

  84

• Number of Macro Cells:

  128

• Number of Outputs:

  80

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  0 DEDICATED INPUTS, 80 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Packing Method:

  TRAY

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  10 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
