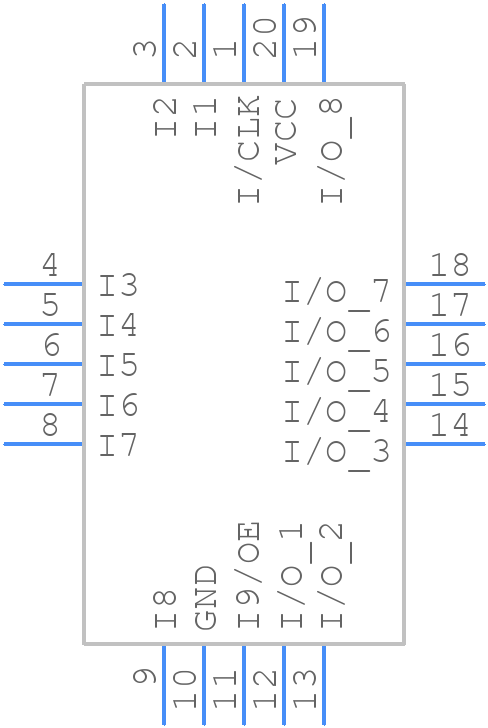

ATF16V8BQL-15JU - Microchip

ATF16V8BQL-15JU Details

• Manufacturer Part Number:

  ATF16V8BQL-15JU

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LCC-20

• Pin Count:

  20

• Manufacturer Package Code:

  PLCC-20

• Country Of Origin:

  Philippines, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  45 MHz

• JESD-30 Code:

  S-PQCC-J20

• JESD-609 Code:

  e3

• Length:

  8.966 mm

• Number of Dedicated Inputs:

  8

• Number of I/O Lines:

  8

• Number of Inputs:

  18

• Number of Outputs:

  8

• Number of Product Terms:

  64

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8 DEDICATED INPUTS, 8 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC20,.4SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Packing Method:

  TUBE

• Programmable Logic Type:

  FLASH PLD

• Propagation Delay:

  15 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  8.966 mm
