ATF22LV10CQZ-30PU - Microchip

Description: EEPLD - Electronically Erasable Programmable Logic Devices 30 ns 24 I/O Pins 10 macorcells 10 reg

Download ATF22LV10CQZ-30PU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

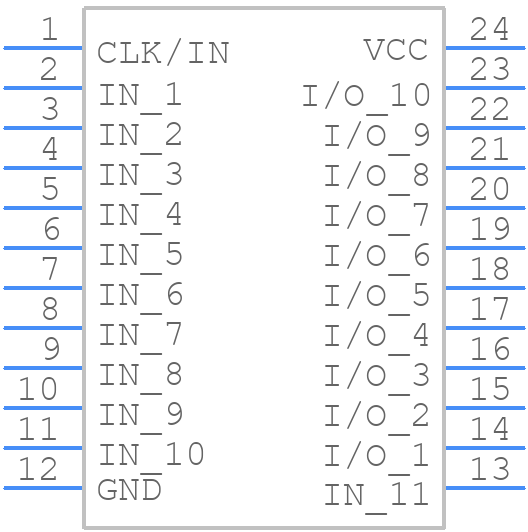

Symbol
ATF22LV10CQZ-30PU - Microchip - PCB symbol
click to zoom

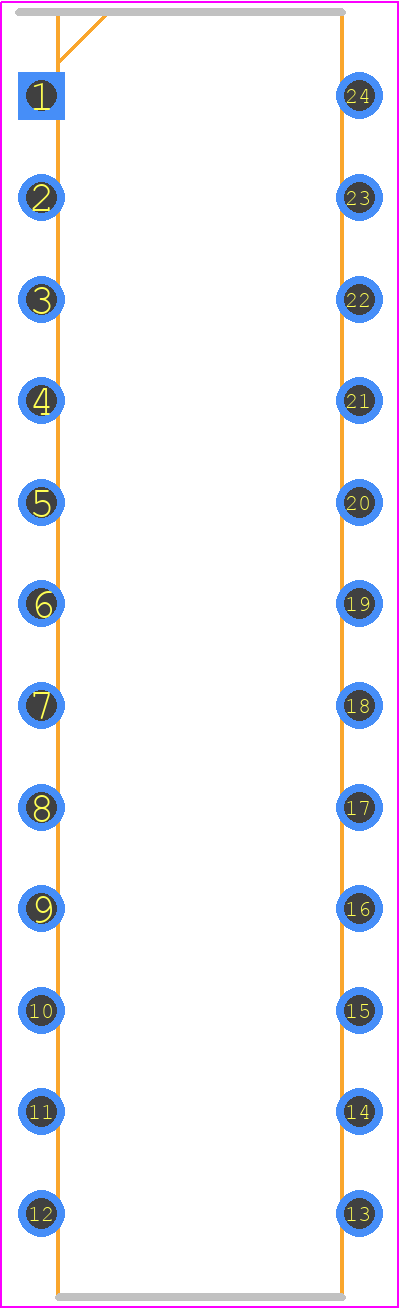

PCB Footprints
ATF22LV10CQZ-30PU - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24P3 – PDIP-1
click to zoom
3D Models
ATF22LV10CQZ-30PU - Microchip - 3D model - Dual-In-Line Packages - 24P3 – PDIP-1
click to zoom

ATF22LV10CQZ-30PU Details

  • Manufacturer Part Number:

    ATF22LV10CQZ-30PU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SPDIP-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Architecture:

    PAL-TYPE

  • Clock Frequency-Max:

    25 MHz

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.887 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    11

  • Number of I/O Lines:

    10

  • Number of Inputs:

    22

  • Number of Outputs:

    10

  • Number of Product Terms:

    132

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    11 DEDICATED INPUTS, 10 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Programmable Logic Type:

    FLASH PLD

  • Propagation Delay:

    30 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.334 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ATF22LV10CQZ-30PU Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC before applying any input signals. This ensures that the device is properly initialized and configured before receiving any input signals.
  • During power-up, the JTAG interface should be held in a high-impedance state until VCC reaches its minimum specified voltage. During power-down, the JTAG interface should be held in a high-impedance state until VCC falls below its minimum specified voltage.
  • The maximum operating frequency of the ATF22LV10CQZ-30PU is 30 MHz, as indicated by the '-30' in the part number. However, the actual operating frequency may be limited by the specific application and system design.
  • The ATF22LV10CQZ-30PU can be programmed using a variety of methods, including JTAG, ISP (In-System Programming), and configuration files. The specific programming method will depend on the development environment and tools being used.
  • The ATF22LV10CQZ-30PU is a specific variant of the ATF22LV10C device family, with a 30 MHz maximum operating frequency and a QFN package. Other variants may have different operating frequencies, packages, or features, so it's essential to consult the datasheet and product documentation to determine the best device for a specific application.
