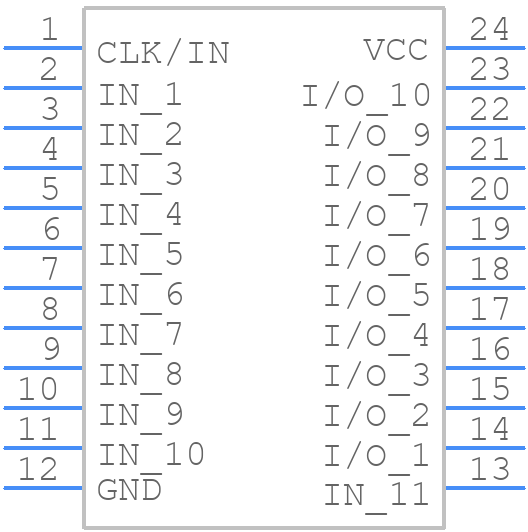

ATF22LV10CQZ-30SU - Microchip

ATF22LV10CQZ-30SU Details

• Manufacturer Part Number:

  ATF22LV10CQZ-30SU

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-24

• Pin Count:

  24

• Manufacturer Package Code:

  SOIC-24

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  25 MHz

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  15.4 mm

• Number of Dedicated Inputs:

  11

• Number of I/O Lines:

  10

• Number of Inputs:

  22

• Number of Outputs:

  10

• Number of Product Terms:

  132

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  11 DEDICATED INPUTS, 10 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TUBE

• Programmable Logic Type:

  FLASH PLD

• Propagation Delay:

  30 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm
