ATF750C-10JU - Microchip

Description: CPLD - Complex Programmable Logic Devices

Download ATF750C-10JU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

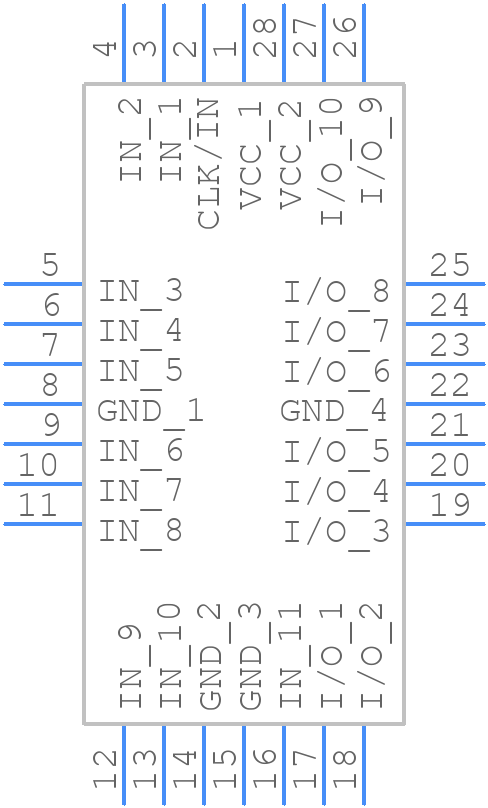

ATF750C-10JU - Microchip - PCB symbol
click to zoom
PCB Footprints

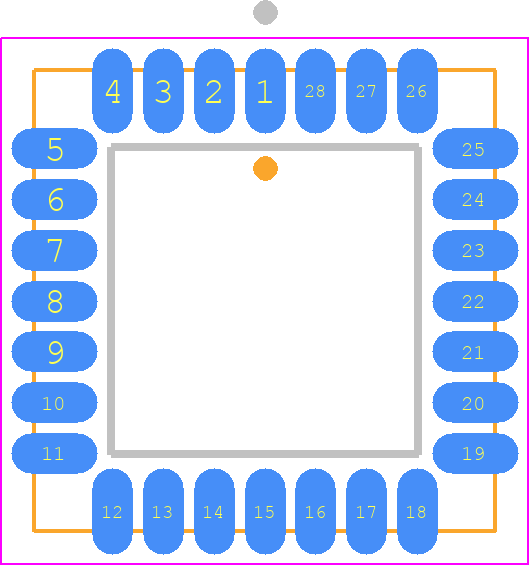

ATF750C-10JU - Microchip PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - ATF22V10CQ-15JU
click to zoom
3D Models
ATF750C-10JU - Microchip - 3D model - Plastic Leaded Chip Carrier - ATF22V10CQ-15JU
click to zoom

ATF750C-10JU Details

  • Manufacturer Part Number:

    ATF750C-10JU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    PLCC-28

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    NO

  • Clock Frequency-Max:

    83 MHz

  • In-System Programmable:

    NO

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e3

  • JTAG BST:

    NO

  • Length:

    11.5062 mm

  • Number of Dedicated Inputs:

    11

  • Number of I/O Lines:

    10

  • Number of Macro Cells:

    10

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    11 DEDICATED INPUTS, 10 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TUBE

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    10 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.5062 mm

ATF750C-10JU Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATF750C-10JU datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, Microchip's application note AN-114: 'PCB Layout Guidelines for ATF750C' provides more detailed information on PCB layout considerations.
  • The ATF750C-10JU can be programmed using Microchip's ATF750C Programming Software, which is available for download on the Microchip website. The software provides a user-friendly interface for programming the device's configuration, fuse bits, and user-defined data.
  • The ATF750C-10JU has an industrial temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications. However, it's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and reliability.
  • The ATF750C-10JU is not a radiation-hardened device, and it's not suitable for use in high-radiation environments. If you require a radiation-hardened device, Microchip offers other products that are specifically designed for such applications.
  • The typical power consumption of the ATF750C-10JU depends on the operating frequency, voltage, and mode of operation. According to the datasheet, the typical power consumption is around 30mA at 5V and 10MHz. However, it's essential to consult the datasheet and perform power consumption calculations based on your specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATF750C-10JU Overview

Use the download button to access the ATF750C-10JU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATF75, or try a keyword search, such as Programmable Logic Devices

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
