ATM90E36A-AU-Y - Microchip

Description: Analog Front End - AFE 48-TQFP, IND TEMP 1.8V/3V

Download ATM90E36A-AU-Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

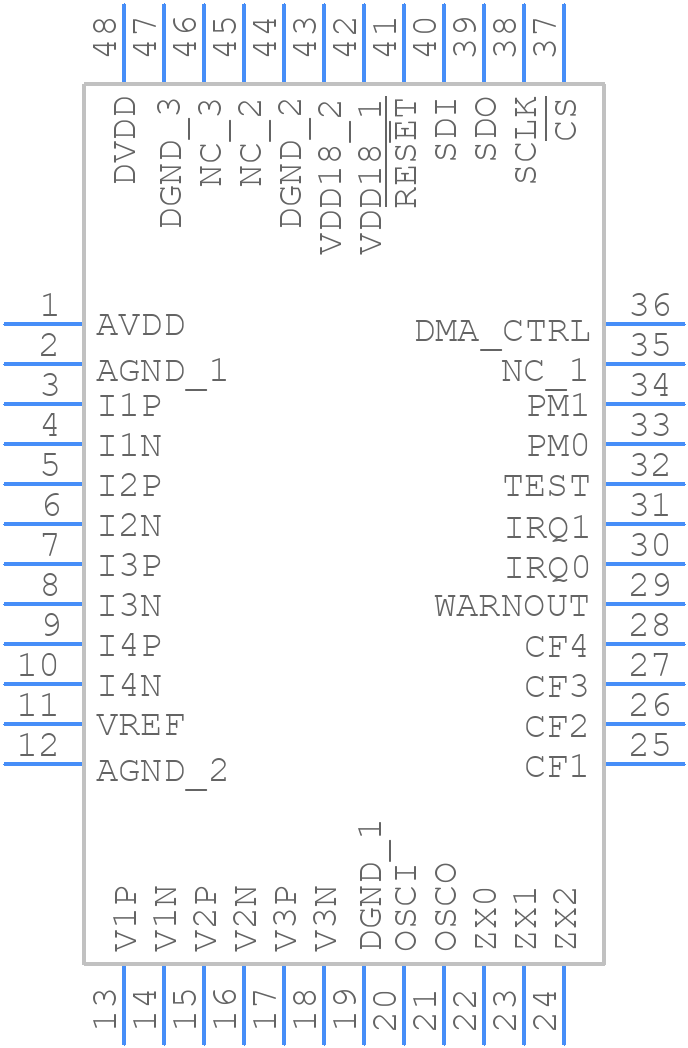

ATM90E36A-AU-Y - Microchip - PCB symbol
click to zoom
PCB Footprints
ATM90E36A-AU-Y - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - ATM90E36A-AU-Y
click to zoom
3D Models
ATM90E36A-AU-Y - Microchip - 3D model - Quad Flat Packages - ATM90E36A-AU-Y
click to zoom

ATM90E36A-AU-Y Details

  • Manufacturer Part Number:

    ATM90E36A-AU-Y

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ATM90E36A-AU-Y Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the high-current paths short and wide.
  • Calibration involves adjusting the gain and offset of the current and voltage channels. Use the built-in calibration registers to adjust the gain and offset. You can also use an external calibration circuit to fine-tune the calibration. Refer to the application note AN200043 for detailed calibration procedures.
  • The ATM90E36A-AU-Y can measure currents up to 100 A. However, the maximum current that can be measured accurately depends on the shunt resistor value and the gain setting. Refer to the datasheet for the recommended shunt resistor values and gain settings for different current ranges.
  • Use a high-accuracy current transformer or Rogowski coil to measure the current. Implement a digital filter to remove noise and harmonics from the measurement. Use the built-in RMS calculation feature to accurately measure the energy. Refer to the application note AN200044 for more information on energy measurement in the presence of harmonics and distortion.
  • Yes, the ATM90E36A-AU-Y can be used for polyphase energy measurement. You can connect multiple devices to measure the energy in each phase. Use the built-in phase compensation feature to ensure accurate energy measurement. Refer to the application note AN200045 for more information on polyphase energy measurement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATM90E36A-AU-Y Overview

Use the download button to access the ATM90E36A-AU-Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATM90, or try a keyword search, such as Other Signal Circuits
