Part Image

ATMEGA164PV-10AU - Microchip

Description: ATMEGA164PV-10AU, 8 bit AVR Microcontroller 10MHz 16, 512kB, B Flash, 1kb RAM, I2C SPI 44-Pin TQFP

Download ATMEGA164PV-10AU Model

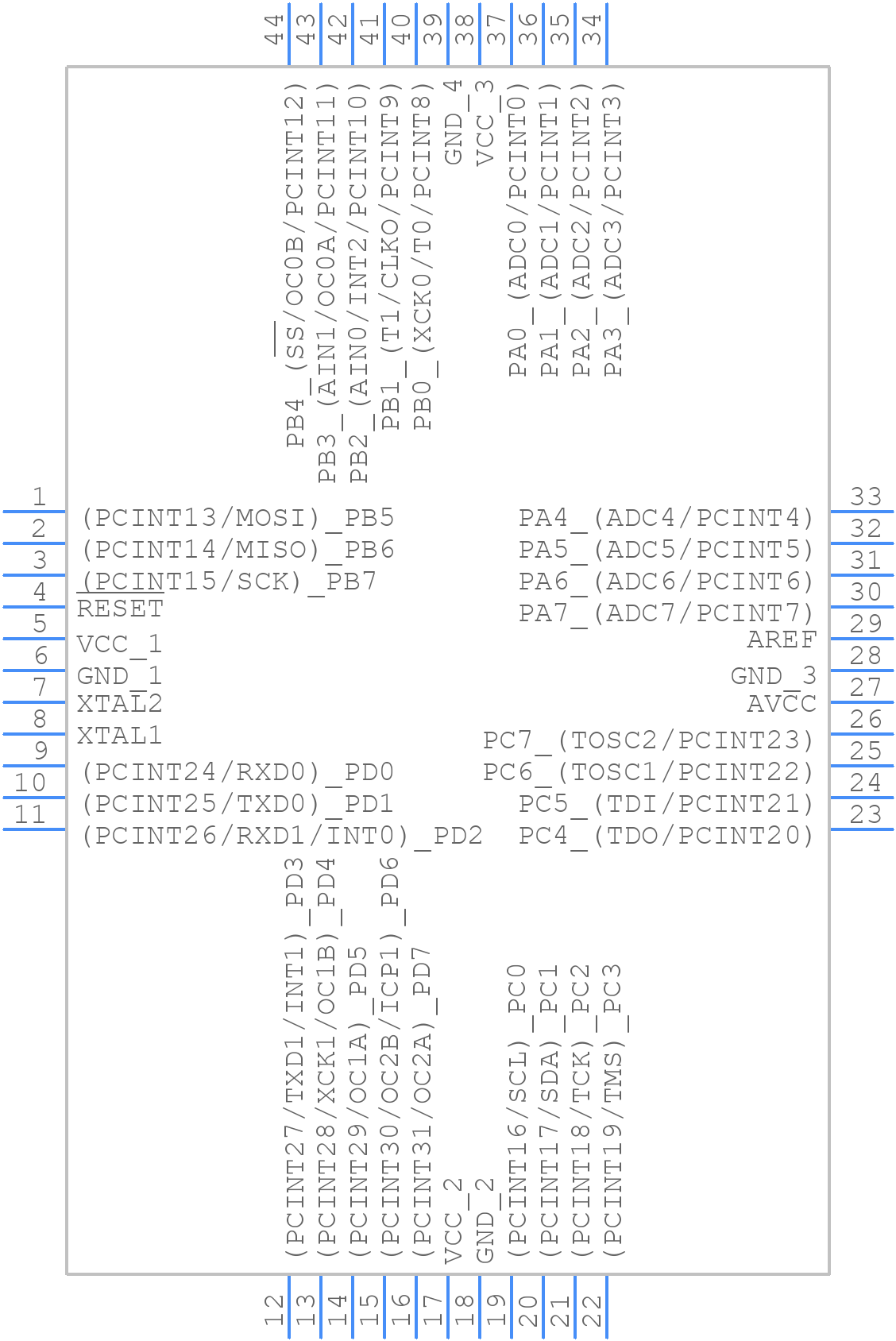

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

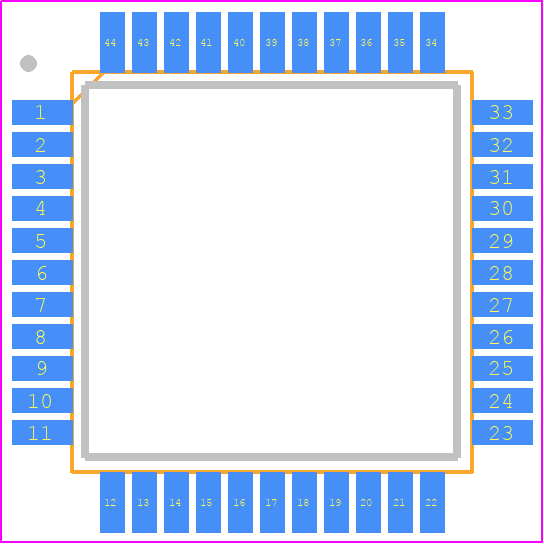

ATMEGA164PV-10AU - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 44A - 44-lead, 10 x 10mm
click to zoom
3D Models
ATMEGA164PV-10AU - Microchip  - 3D model - Quad Flat Packages - 44A - 44-lead, 10 x 10mm
click to zoom

ATMEGA164PV-10AU Details

  • Manufacturer Part Number:

    ATMEGA164PV-10AU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFP

  • Package Description:

    10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, GREEN, PLASTIC, MS-026ACB, TQFP-44

  • Pin Count:

    44

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Atmel Corporation

  • Has ADC:

    YES

  • Additional Feature:

    OPERATES AT 2.7 V MIMIMUM SUPPLY AT 10 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    AVR RISC

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    3

  • Number of I/O Lines:

    32

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    44

  • Number of Timers:

    3

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTQFP

  • Package Equivalence Code:

    TQFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    10 MHz

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATMEGA164PV-10AU Overview

Use the download button to access the ATMEGA164PV-10AU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATMEG, or try a keyword search, such as Microcontrollers
