The ATMEGA3209-AF can operate at a maximum clock frequency of 20 MHz, but it is recommended to use a clock frequency of 16 MHz or lower for optimal performance and to ensure that the device operates within its specified parameters.
To configure the ATMEGA3209-AF for low power consumption, you can use the Power Reduction Register (PRR) to disable unused peripherals, set the clock prescaler to a lower value, and use the sleep modes (Idle, Power-down, Power-save, and Standby) to reduce power consumption. Additionally, you can use the Brown-out Detector (BOD) to detect voltage drops and enter a sleep mode to conserve power.
Yes, the ATMEGA3209-AF can operate with a power supply voltage of 1.8V to 5.5V, including 3.3V. However, it is recommended to use a power supply voltage of 5V or lower to ensure that the device operates within its specified parameters.
The ATMEGA3209-AF can be programmed using a variety of methods, including In-System Programming (ISP) using a programmer such as the Atmel-ICE, JTAGICE3, or AVRISP, or using a bootloader. You can also use a development environment such as Atmel Studio or MPLAB X IDE to write, compile, and upload code to the device.
The ATMEGA3209-AF has 320KB of flash memory, which can be used for storing code. However, some of this memory is used for the bootloader and other system functions, so the actual amount of available flash memory for user code is around 256KB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ATMEGA3209-AF Overview

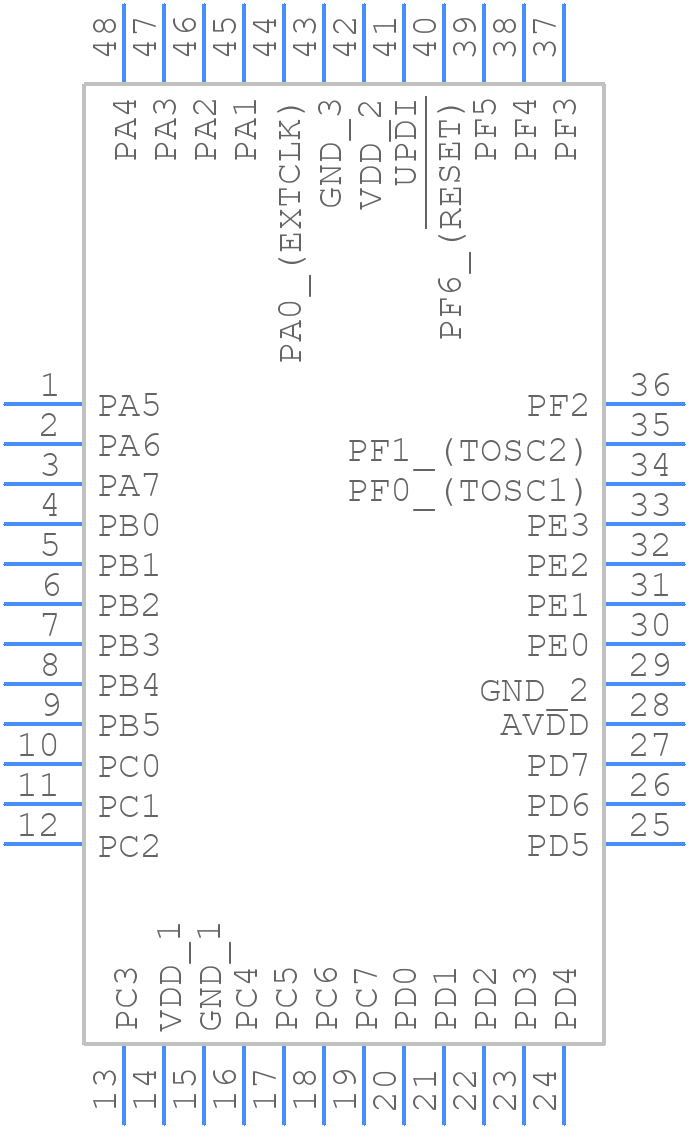

Use the download button to access the ATMEGA3209-AF schematic symbol, PCB footprint, and 3D model.
