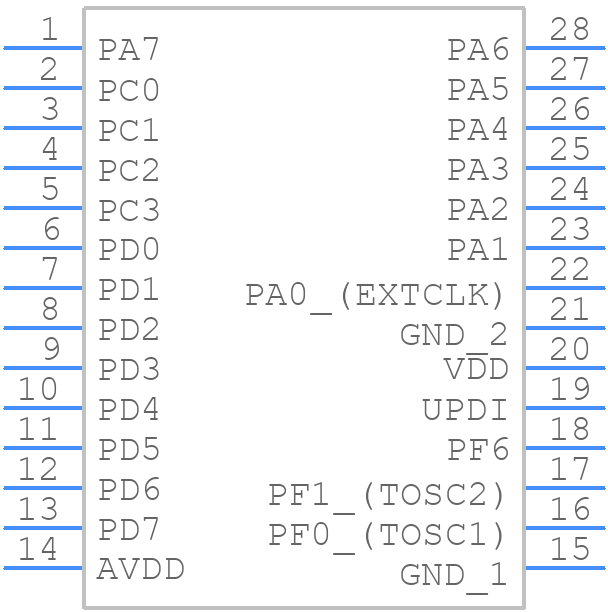

ATMEGA808-XFR - Microchip

ATMEGA808-XFR Details

• Manufacturer Part Number:

  ATMEGA808-XFR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SSOP-28

• Pin Count:

  28

• Manufacturer Package Code:

  SSOP-28

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  11 Weeks

• Date Of Intro:

  2019-08-07

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  18

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 2.7V SUPPLY @ 8MHZ

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  AVR RISC

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e3

• Length:

  10.2 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of External Interrupts:

  6

• Number of I/O Lines:

  23

• Number of Serial I/Os:

  3

• Number of Terminals:

  28

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• RAM (bytes):

  1024

• RAM (words):

  1024

• ROM (words):

  8192

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2 mm

• Speed:

  16 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
