ATQ209 - Panasonic

Description: Panasonic DPDT Non-Latching Relay PCB Mount, 5V dc Coil, 1 A

Download ATQ209 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

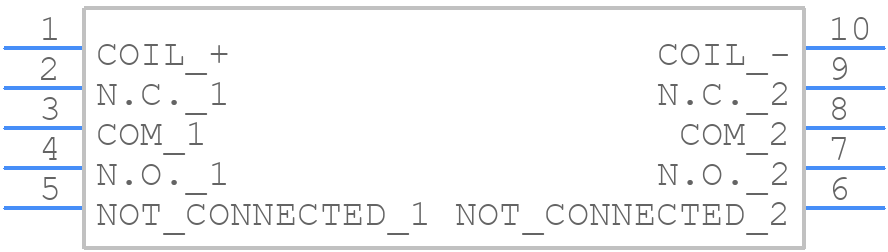

ATQ209 - Panasonic - PCB symbol
click to zoom
PCB Footprints

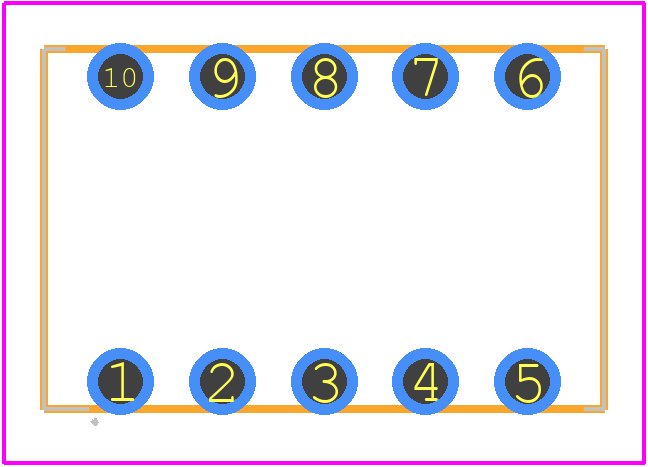

ATQ209 - Panasonic PCB footprint - Other - Other - ATQ209-1
click to zoom
3D Models
ATQ209 - Panasonic - 3D model - Other - ATQ209-1
click to zoom

ATQ209 Details

  • Manufacturer Part Number:

    ATQ209

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    LOW PROFILE

  • Body Height:

    5 mm

  • Coil Current(DC)-Max:

    0.03 A

  • Coil Operate Voltage(DC):

    3.75 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    166.67 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    .5A@125VAC

  • Contact Current(AC)-Max:

    0.5 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@30VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    200000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ATQ209 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ATQ209 is -40°C to 125°C.
  • To ensure reliability in high-vibration environments, it is recommended to use a suitable mounting method, such as screw mounting or adhesive mounting, and to follow the recommended torque values for screw mounting.
  • The maximum allowable current for the ATQ209 is 1A per pin, but it is recommended to derate the current based on the ambient temperature and other environmental factors.
  • To prevent damage during soldering, it is recommended to use a soldering iron with a temperature of 350°C or less, and to avoid applying excessive force or pressure to the component.
  • The recommended storage condition for the ATQ209 is in a dry, cool place, away from direct sunlight and moisture, and in its original packaging or a similar anti-static package.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATQ209 Overview

Use the download button to access the ATQ209 schematic symbol, PCB footprint, and 3D model.
