ATQ212 - Panasonic

ATQ212 Details

• Manufacturer Part Number:

  ATQ212

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• Body Breadth:

  9 mm

• Body Height:

  5 mm

• Body Length or Diameter:

  14 mm

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  4.5 V

• Coil Power:

  100 mW

• Coil Release Voltage(DC):

  4.5 V

• Coil Resistance:

  360 Ω

• Coil Voltage(DC)-Max:

  9 V

• Coil Voltage-Nom:

  6 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  62.5VA@125VAC

• Contact (AC) Max Rating R Load:

  1A@125VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Power Rating R Load:

  30W@110VDC

• Contact (DC) Max Rating R Load:

  1A@110VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  110 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER

• End Contact Plating:

  GOLD

• Insulation Resistance:

  1000000000 Ω

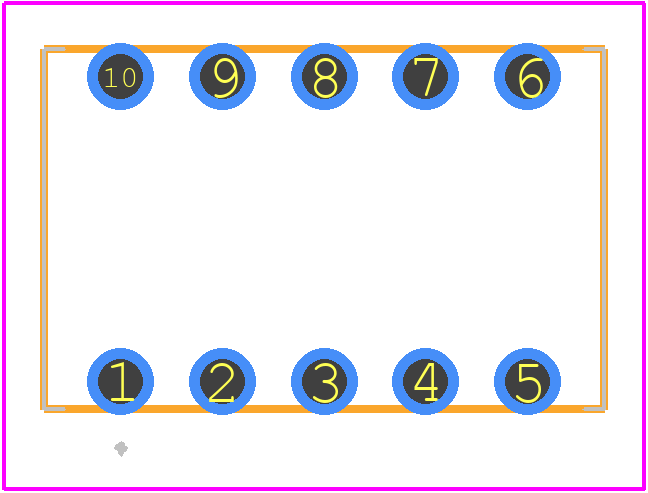

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  3 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TUBE

• Physical Dimension:

  14mm x 9mm x 5mm

• Reference Standard:

  CSA; CUL; UL

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  3 ms

• Surface Mount:

  NO

• Terminal Length:

  0.0035052070104140214 inch

• Termination Type:

  SOLDER
