ATR4251C-TKQW - Microchip

Description: RF Amplifier IC AM, FM 150kHz ~ 30MHz, 70MHz ~ 110MHz 20-SSO

Download ATR4251C-TKQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

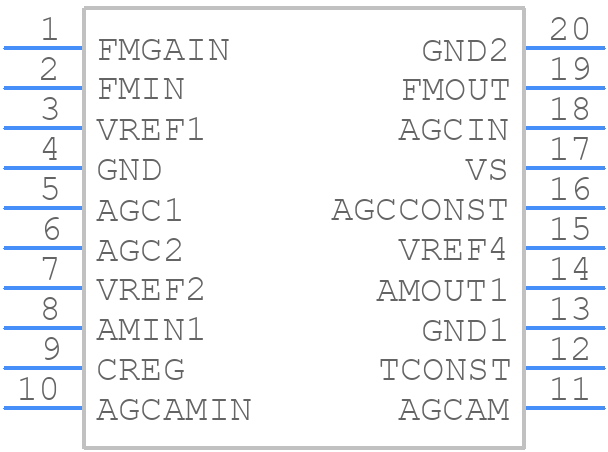

ATR4251C-TKQW - Microchip - PCB symbol
click to zoom
PCB Footprints
ATR4251C-TKQW - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SSO20
click to zoom
3D Models
ATR4251C-TKQW - Microchip - 3D model - Small Outline Packages - SSO20
click to zoom

ATR4251C-TKQW Details

  • Manufacturer Part Number:

    ATR4251C-TKQW

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    TSSOP-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ATR4251C-TKQW Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATR4251C-TKQW evaluation board user's guide. It's essential to follow the layout guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. It's crucial to select components with the correct values, tolerances, and temperature ratings to ensure the device operates within specifications.
  • The ATR4251C-TKQW has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider temperature derating for reliable operation.
  • The ATR4251C-TKQW can be programmed using the SPI interface. Microchip provides a programming guide and software tools, such as the MPLAB X IDE, to assist with register programming and configuration.
  • The ATR4251C-TKQW requires a specific power sequencing to ensure proper operation. The datasheet provides a recommended power-up sequence, and it's essential to follow this sequence to prevent damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATR4251C-TKQW Overview

Use the download button to access the ATR4251C-TKQW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATR42, or try a keyword search, such as Other Consumer ICs
