The recommended torque for the screws is typically between 2-4 in-lbs (0.2-0.4 Nm), but it's best to consult the specific screw manufacturer's recommendations or contact Advanced Thermal Solutions Inc for guidance.
While the datasheet specifies a particular screw type and size, it's possible to use alternative screws. However, it's crucial to ensure the screws are compatible with the heat sink's material and design to avoid damage or compromised performance. Consult with Advanced Thermal Solutions Inc or a mechanical engineer for guidance.
To ensure proper TIM application, follow the manufacturer's instructions, and apply a thin, even layer to the heat sink's surface. Avoid over-application, as this can negatively impact thermal performance. A good rule of thumb is to use a layer thickness of 0.05 mm to 0.1 mm.
While the datasheet may not specify a maximum operating temperature, Advanced Thermal Solutions Inc recommends operating this heat sink within a temperature range of -40°C to 125°C. Exceeding this range may compromise the heat sink's performance or longevity.
Yes, Advanced Thermal Solutions Inc offers customization options for their heat sinks. Contact their sales team or engineering department to discuss your specific requirements, such as modified dimensions, materials, or finishes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ATS-CPX054054025-128-C2-R0 Overview

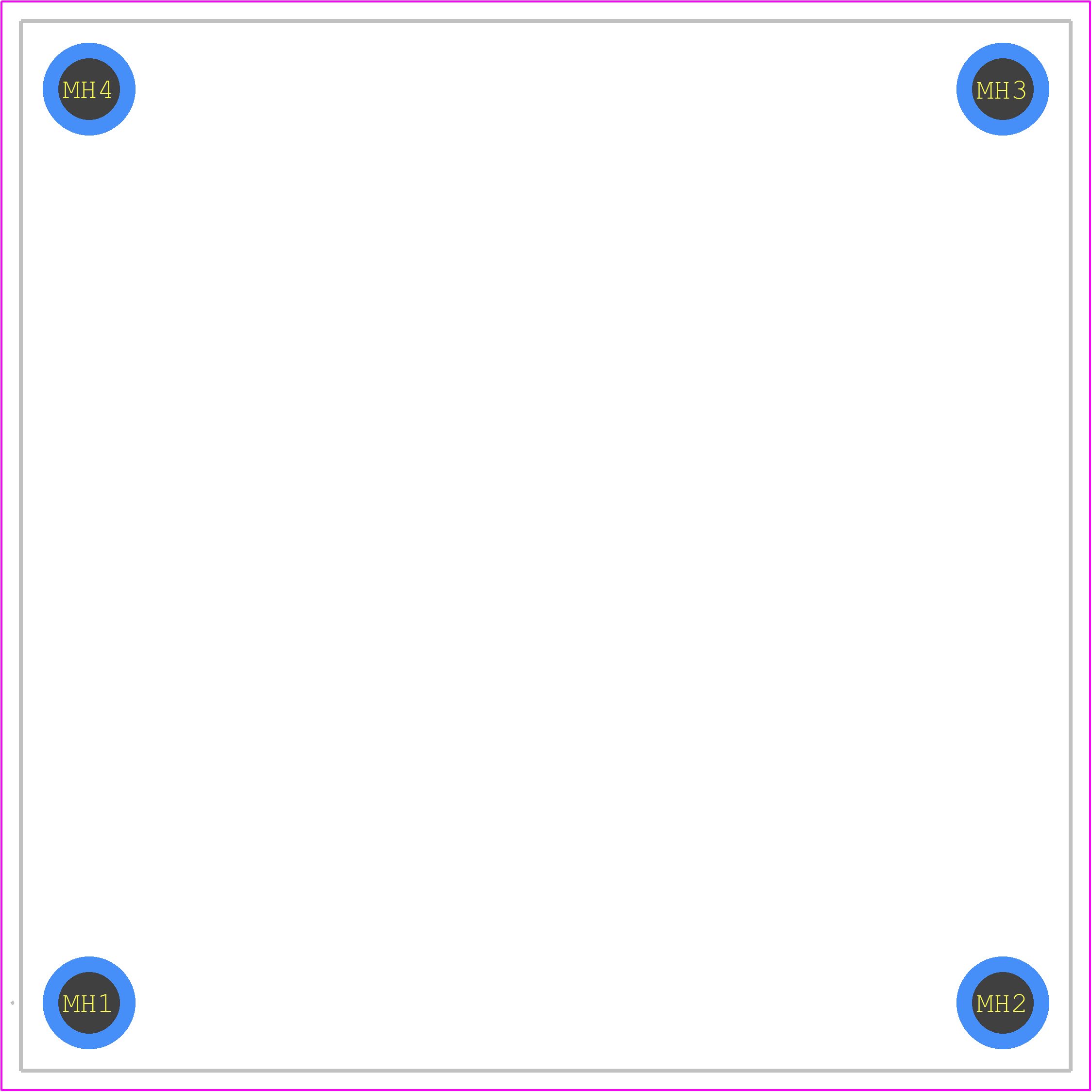

Use the download button to access the ATS-CPX054054025-128-C2-R0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATS-C,
or try a keyword search, such as Heat Sinks
