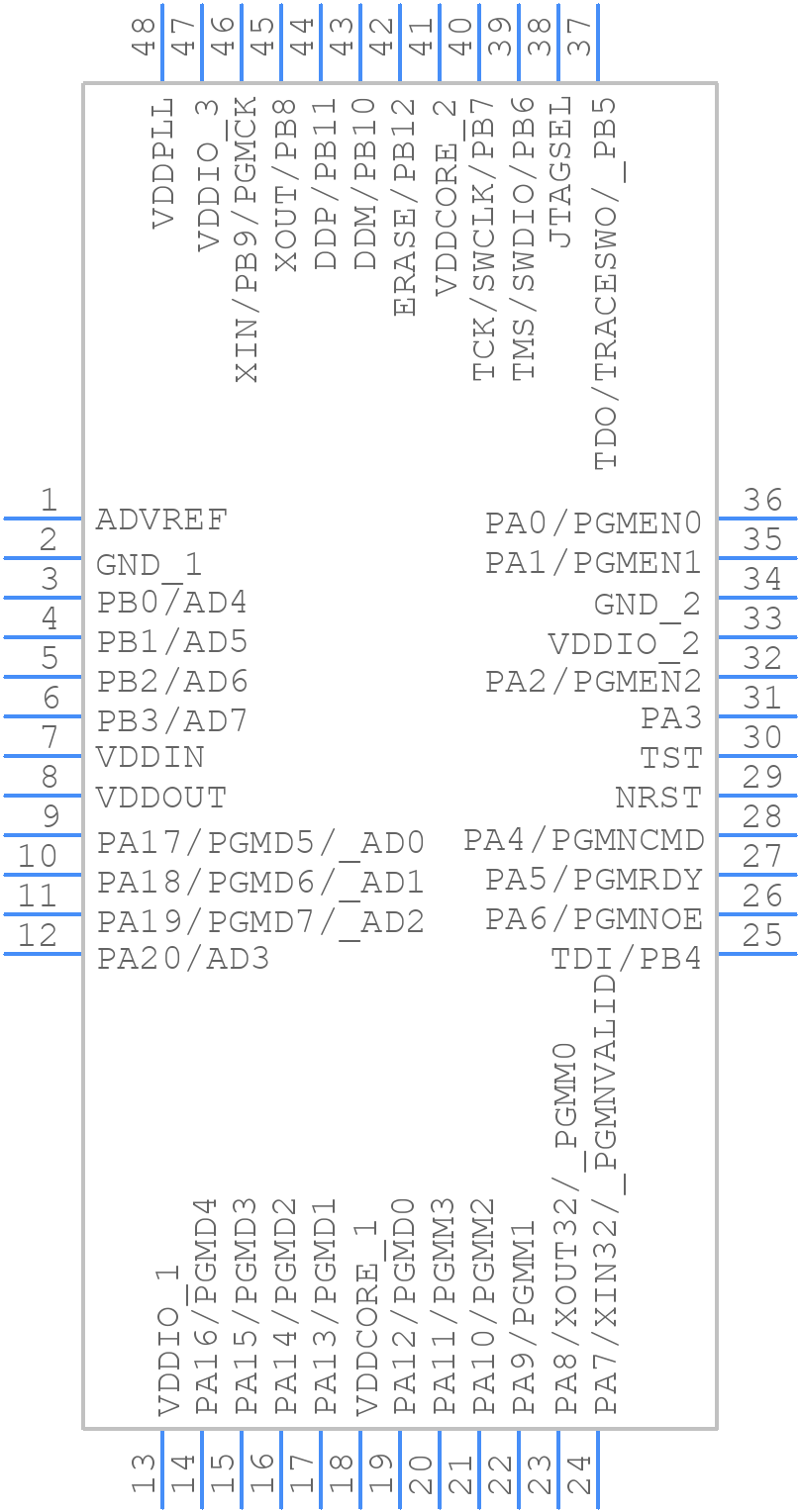

ATSAM3S1AA-AU - Microchip

ATSAM3S1AA-AU Details

• Manufacturer Part Number:

  ATSAM3S1AA-AU

• Part Life Cycle Code:

  Active

• Package Description:

  LQFP-48

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  8.23

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M3

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G48

• Length:

  7 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  22

• Number of External Interrupts:

  30

• Number of I/O Lines:

  34

• Number of Serial I/Os:

  4

• Number of Terminals:

  48

• Number of Timers:

  4

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• RAM (bytes):

  16384

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  64 MHz

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
