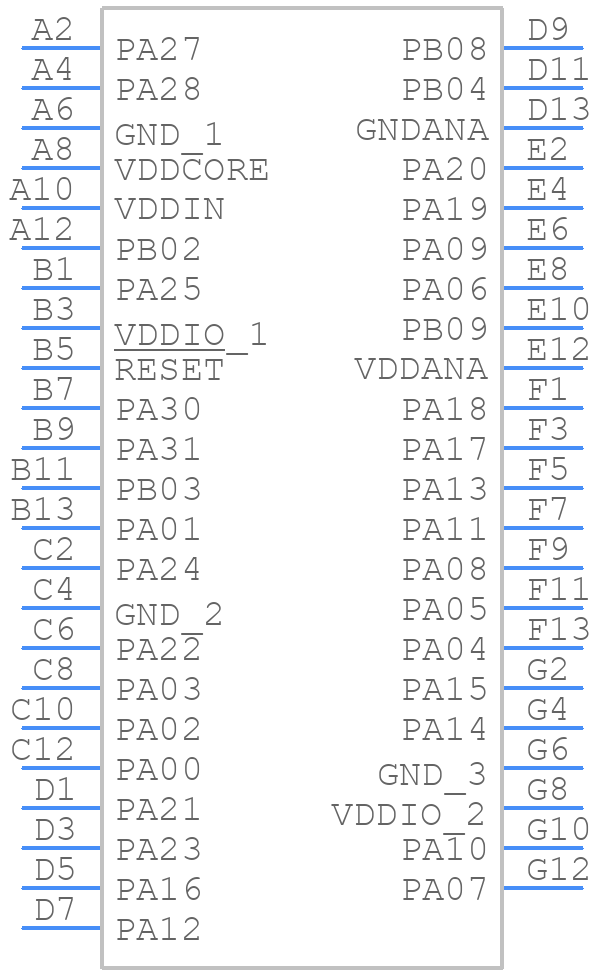

ATSAMD21G18A-UUT - Microchip

ATSAMD21G18A-UUT Details

• Manufacturer Part Number:

  ATSAMD21G18A-UUT

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WLCSP-45

• Pin Count:

  45

• Manufacturer Package Code:

  WLCSP-45

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  11 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  Cortex-M0+

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  R-XBCS-B45

• JESD-609 Code:

  e1

• Length:

  2.944 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  12

• Number of External Interrupts:

  16

• Number of I/O Lines:

  35

• Number of Serial I/Os:

  8

• Number of Terminals:

  45

• Number of Timers:

  6

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  CSP

• Package Equivalence Code:

  BGA45,13X7,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP SCALE

• RAM (bytes):

  32768

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Screening Level:

  TS 16949

• Seated Height-Max:

  0.483 mm

• Speed:

  48 MHz

• Supply Current-Max:

  7 mA

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  1.62 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Width:

  2.699 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
