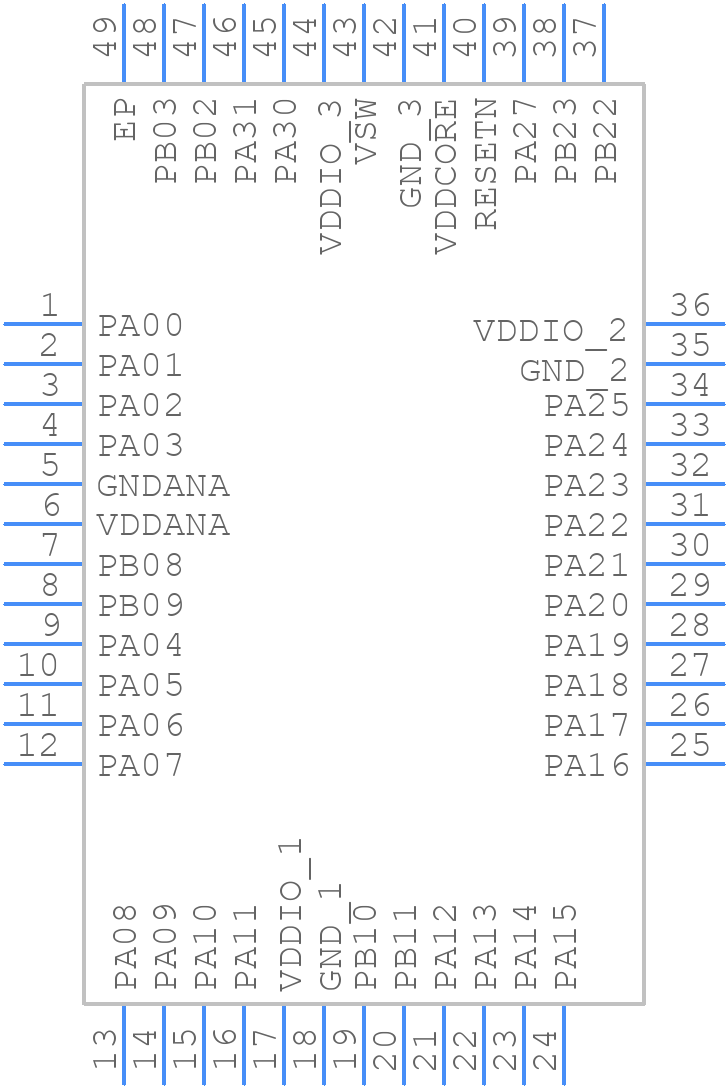

ATSAME51G19A-MU-EFP - Microchip

ATSAME51G19A-MU-EFP Details

• Manufacturer Part Number:

  ATSAME51G19A-MU-EFP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VQFN-48

• Pin Count:

  48

• Manufacturer Package Code:

  VQFN-48

• Country Of Origin:

  Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  18

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  CORTEX-M4F

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-XQCC-N48

• JESD-609 Code:

  e3

• Length:

  7 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  32

• Number of External Interrupts:

  16

• Number of I/O Lines:

  37

• Number of Terminals:

  48

• Number of Timers:

  13

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  196608

• RAM (words):

  196608

• ROM (words):

  524288

• ROM Programmability:

  FLASH

• Screening Level:

  TS 16949

• Seated Height-Max:

  0.9 mm

• Speed:

  120 MHz

• Supply Current-Max:

  60 mA

• Supply Voltage-Max:

  3.63 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
