ATSAME70Q21B-CN - Microchip

ATSAME70Q21B-CN Details

• Manufacturer Part Number:

  ATSAME70Q21B-CN

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

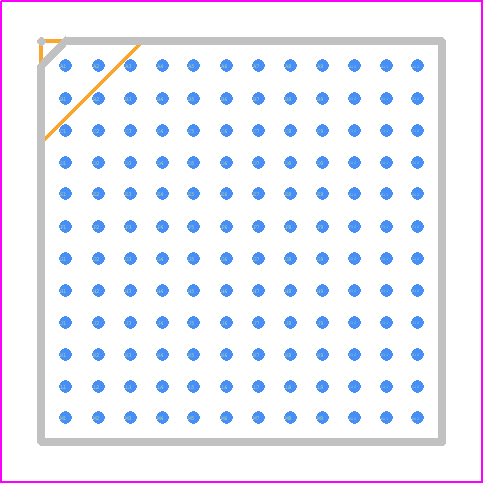

• Package Description:

  LFBGA-144

• Pin Count:

  144

• Manufacturer Package Code:

  LFBGA-144

• Country Of Origin:

  Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  10 Weeks

• Date Of Intro:

  2017-12-06

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  19

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M7

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PBGA-B144

• Length:

  10 mm

• Low Power Mode:

  NO

• Number of DMA Channels:

  24

• Number of External Interrupts:

  1

• Number of I/O Lines:

  114

• Number of Serial I/Os:

  8

• Number of Terminals:

  144

• Number of Timers:

  12

• On Chip Data RAM Width:

  32

• On Chip Program ROM Width:

  32

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA144,12X12,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (bytes):

  393216

• RAM (words):

  98304

• ROM (words):

  524288

• ROM Programmability:

  FLASH

• Screening Level:

  TS 16949

• Seated Height-Max:

  1.4 mm

• Speed:

  300 MHz

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  1.32 V

• Supply Voltage-Min:

  1.08 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
