ATSENSE301A-AN - Microchip

Description: Analog Front End - AFE LQFP Green

Download ATSENSE301A-AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

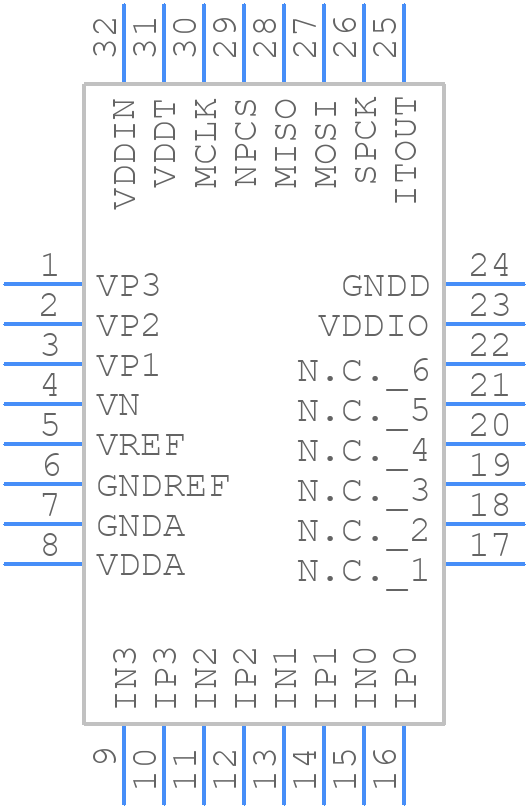

ATSENSE301A-AN - Microchip - PCB symbol
click to zoom
PCB Footprints
ATSENSE301A-AN - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-PIN TQFP (T32-1)-1
click to zoom
3D Models
ATSENSE301A-AN - Microchip - 3D model - Quad Flat Packages - 32-PIN TQFP (T32-1)-1
click to zoom

ATSENSE301A-AN Details

  • Manufacturer Part Number:

    ATSENSE301A-AN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP, TQFP32,.35SQ,32

  • Pin Count:

    32

  • Manufacturer Package Code:

    TQFP-32

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2017-10-17

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ATSENSE301A-AN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATSENSE301A-AN evaluation kit documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate sensing.
  • Calibration involves adjusting the sensor's sensitivity and offset to match the specific requirements of your application. Microchip provides a calibration procedure in the ATSENSE301A-AN datasheet, which involves measuring the sensor's output at different temperatures and adjusting the internal registers accordingly.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, the device can tolerate short-term excursions up to 150°C. However, prolonged exposure to temperatures above 125°C may affect the device's accuracy and reliability.
  • No, the ATSENSE301A-AN is designed to operate from a 1.8V to 3.6V power supply. Using a 5V power supply may damage the device or affect its accuracy.
  • The ATSENSE301A-AN communicates with a microcontroller through a standard I2C interface. Microchip provides example code and interface guidelines in the ATSENSE301A-AN datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATSENSE301A-AN Overview

Use the download button to access the ATSENSE301A-AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATSEN, or try a keyword search, such as Other Signal Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
