ATSENSE301HA-AU - Microchip

Description: Analog Front End - AFE ROOT PARTSLQFP GRN

Download ATSENSE301HA-AU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

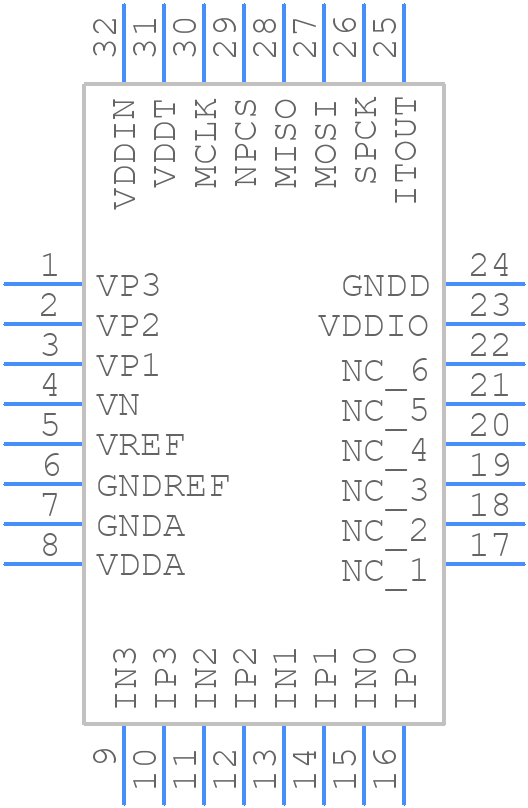

ATSENSE301HA-AU - Microchip - PCB symbol
click to zoom
PCB Footprints
ATSENSE301HA-AU - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-PIN TQFP (T32-1)-1
click to zoom
3D Models
ATSENSE301HA-AU - Microchip - 3D model - Quad Flat Packages - 32-PIN TQFP (T32-1)-1
click to zoom

ATSENSE301HA-AU Details

  • Manufacturer Part Number:

    ATSENSE301HA-AU

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    TQFP-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Channels:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ATSENSE301HA-AU Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ATSENSE301HA-AU datasheet, which includes guidelines for component placement, routing, and grounding. It's essential to follow these guidelines to ensure optimal performance, low noise, and high accuracy.
  • The ATSENSE301HA-AU requires calibration for optimal performance. Microchip provides a calibration procedure in the datasheet, which involves measuring the sensor's output voltage at different temperatures and calculating the calibration coefficients. You can also use Microchip's calibration software tool to simplify the process.
  • The ATSENSE301HA-AU has an operating temperature range of -40°C to +150°C, making it suitable for high-reliability applications. However, the accuracy and linearity of the sensor may degrade at extreme temperatures, so it's essential to consult the datasheet for specific performance characteristics.
  • The ATSENSE301HA-AU is designed to be robust and can operate in high-vibration environments. However, it's essential to ensure that the sensor is properly mounted and secured to the PCB to prevent mechanical stress and damage. You may also need to add additional mechanical damping or vibration isolation to ensure reliable operation.
  • The ATSENSE301HA-AU has an analog output voltage that can be easily interfaced with a microcontroller or other digital systems using an analog-to-digital converter (ADC). Microchip provides example code and application notes for popular microcontrollers, making it easy to integrate the sensor into your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATSENSE301HA-AU Overview

Use the download button to access the ATSENSE301HA-AU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATSEN, or try a keyword search, such as Other Signal Circuits
