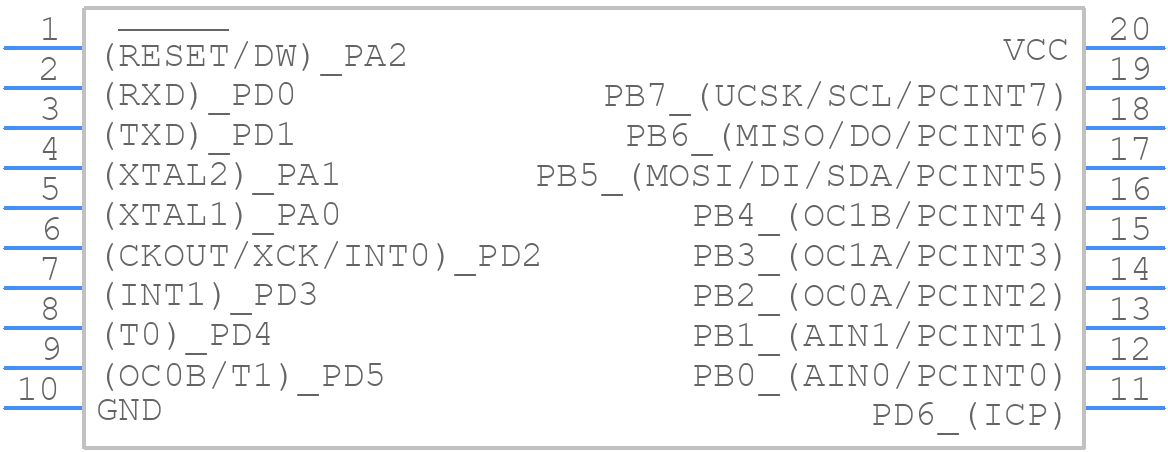

ATTINY2313-20SU - Microchip

ATTINY2313-20SU Details

• Manufacturer Part Number:

  ATTINY2313-20SU

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-20

• Pin Count:

  20

• Manufacturer Package Code:

  SOIC-20

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  9 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  14

• Has ADC:

  NO

• Additional Feature:

  OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  AVR RISC

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of External Interrupts:

  2

• Number of I/O Lines:

  18

• Number of Serial I/Os:

  1

• Number of Terminals:

  20

• Number of Timers:

  2

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  250

• Qualification Status:

  Not Qualified

• RAM (bytes):

  128

• ROM (words):

  1024

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.65 mm

• Speed:

  20 MHz

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
