Part Image

ATTINY85V-15MT - Microchip

Description: IC MCU 8BIT 8KB FLASH 20QFN

Download ATTINY85V-15MT Model

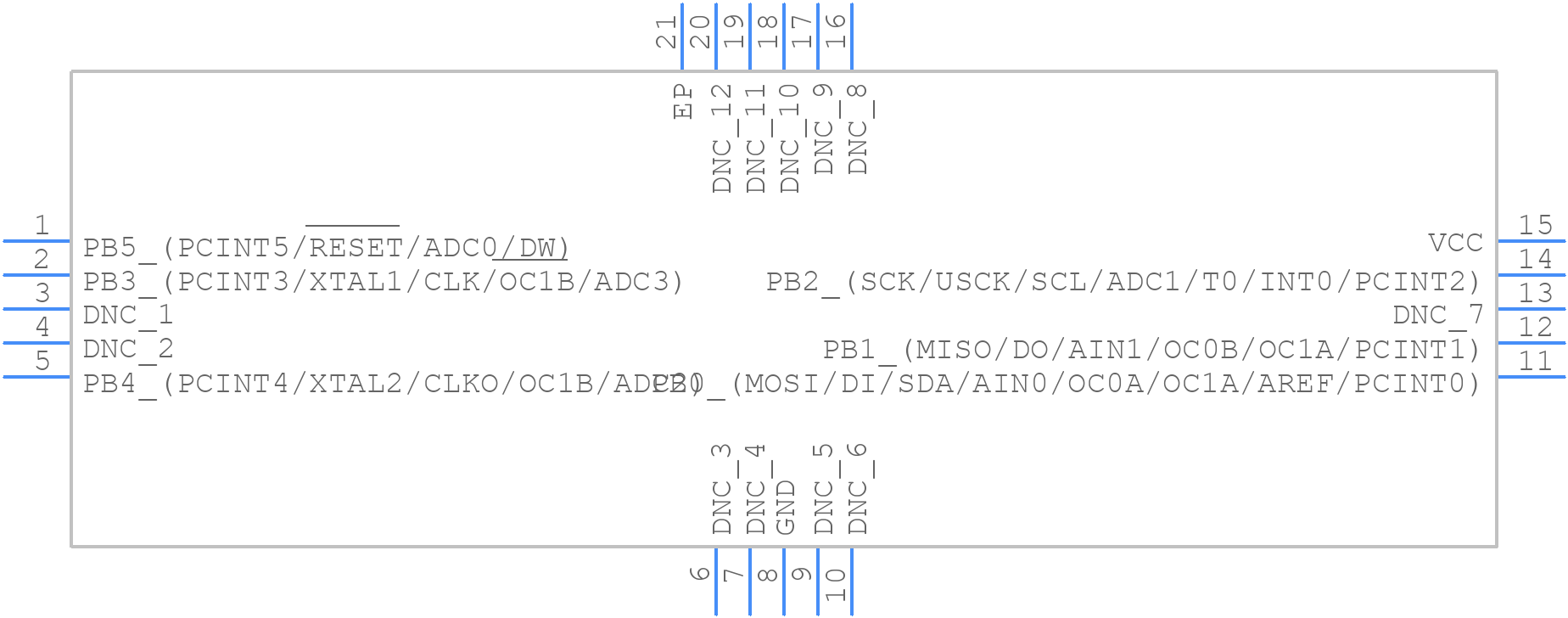

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ATTINY85V-15MT - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PC, 20-Lds - 0.50mm Pitch, 4x4x0.8mm Body size Very very Thin Quad Flat No Lead Package (WQFN) Sawn
click to zoom
3D Models
ATTINY85V-15MT - Microchip  - 3D model - Quad Flat No-Lead - PC, 20-Lds - 0.50mm Pitch, 4x4x0.8mm Body size Very very Thin Quad Flat No Lead Package (WQFN) Sawn
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for ATTINY85V-15MT
  • Part Number ATTINY85V-15MT
  • Manufacturer Microchip
  • Pin Count 21
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - PC, 20-Lds - 0.50mm Pitch, 4x4x0.8mm Body size Very very Thin Quad Flat No Lead Package (WQFN) Sawn
  • Released Date Aug 18, 2018
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

ATTINY85V-15MT Details

  • Manufacturer Part Number:

    ATTINY85V-15MT

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    7.2

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ

  • Bit Size:

    8

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of I/O Lines:

    6

  • Number of Terminals:

    20

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.8 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATTINY85V-15MT Overview

Use the download button to access the ATTINY85V-15MT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATTIN, or try a keyword search, such as Microcontrollers
