ATWINC1500B-MU-T042 - Microchip

Description: RF System on a Chip - SoC ATWINC1500 802.11 b/g/n IC

Download ATWINC1500B-MU-T042 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

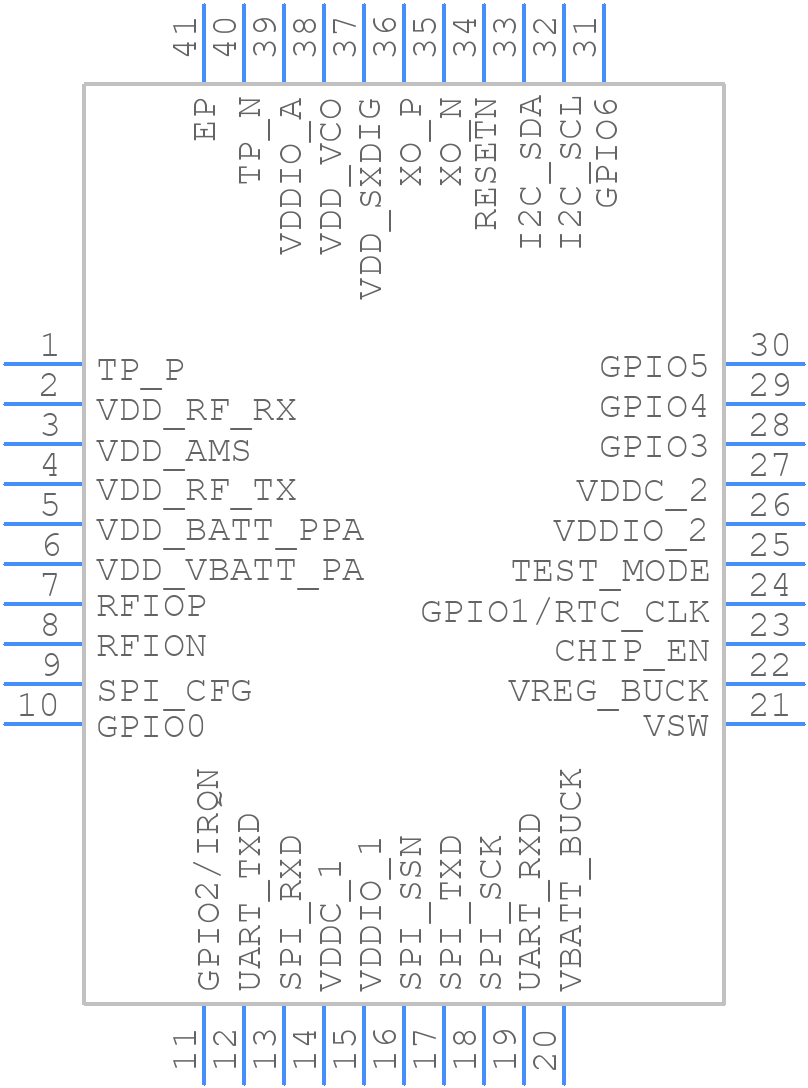

ATWINC1500B-MU-T042 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATWINC1500B-MU-T042 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-VFQFN Exposed Pad
click to zoom
3D Models
ATWINC1500B-MU-T042 - Microchip - 3D model - Quad Flat No-Lead - 40-VFQFN Exposed Pad
click to zoom

ATWINC1500B-MU-T042 Details

  • Manufacturer Part Number:

    ATWINC1500B-MU-T042

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    40

  • Manufacturer Package Code:

    VQFN-40

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Clock Frequency-Max:

    48 MHz

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ATWINC1500B-MU-T042 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ATWINC1500B-MU-T042 is -40°C to +85°C.
  • The ATWINC1500B-MU-T042 can be configured for Wi-Fi networking using the ATWINC1500 SDK, which provides a set of APIs and examples for configuring the module. You can also use the Microchip Wi-Fi SDK, which provides a more comprehensive set of tools and examples.
  • The maximum data transfer rate for the ATWINC1500B-MU-T042 is up to 72.2 Mbps.
  • Yes, the ATWINC1500B-MU-T042 can be used with a variety of microcontrollers, including those from other manufacturers. However, you may need to develop custom drivers or port the ATWINC1500 SDK to your specific microcontroller platform.
  • The ATWINC1500B-MU-T042 supports WPA2-PSK (AES) encryption, which provides secure encryption for your Wi-Fi connection. You can also use other security protocols, such as WPA3, with the module.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATWINC1500B-MU-T042 Overview

Use the download button to access the ATWINC1500B-MU-T042 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATWIN, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
