ATXD217SAZ - Panasonic

Description: 6,000 V surge withstand voltage, 2 Form C and 2 A high dielectric strength relays

Download ATXD217SAZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ATXD217SAZ model

Email notifications will be applied after download.

Send part feedback

Symbol

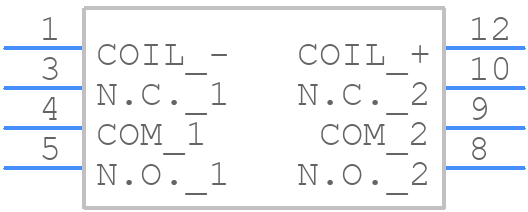

ATXD217SAZ - Panasonic - PCB symbol

PCB Footprints

ATXD217SAZ - Panasonic PCB footprint - Other - Other - SA_8_Pin

3D Models

ATXD217SAZ - Panasonic - 3D model - Other - SA_8_Pin

Datasheet Download Datasheet
Stock & Prices Price & Stock for ATXD217SAZ
Part Number ATXD217SAZ
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SA_8_Pin
Released Date Oct 16, 2025
Last Modified Date Mar 6, 2026 5:01 PM UTC
Pinout / Pin List Click Here (Member Only)

ATXD217SAZ Details

Manufacturer Part Number:
ATXD217SAZ
Manufacturer:
Panasonic Electronic Components
