AUIR3200STR - Infineon

Description: Gate Drivers High side mosfet TEMP protection

Download AUIR3200STR Model

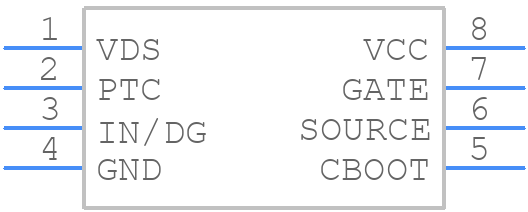

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AUIR3200STR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 leads
click to zoom
3D Models
AUIR3200STR - Infineon  - 3D model - Small Outline Packages - SOIC-8 leads
click to zoom

AUIR3200STR Details

  • Manufacturer Part Number:

    AUIR3200STR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.16 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.02 µs

  • Turn-on Time:

    1.6 µs

  • Width:

    3.9 mm

AUIR3200STR Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to improve heat dissipation. A minimum of 10 thermal vias with a diameter of 0.3 mm is recommended.
  • Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and follow the recommended PCB layout guidelines. Additionally, consider using a heat sink with a thermal resistance of less than 10 K/W.
  • The maximum allowed voltage on the VCC pin is 5.5 V. Exceeding this voltage may damage the device.
  • Infineon recommends using a human body model (HBM) ESD protection circuit with a minimum of 2 kV rating. Additionally, ensure that the PCB design includes ESD protection diodes and resistors as specified in the datasheet.
  • The recommended operating frequency range for the AUIR3200STR is 100 kHz to 1 MHz. Operating outside this range may affect device performance and reliability.
