Infineon provides a recommended PCB layout in their application note AN2014-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating.
The maximum allowed voltage drop across the sense resistors is typically limited to 100mV to ensure accurate current sensing. However, this value may vary depending on the specific application and design requirements. It's recommended to consult with Infineon's support team or a qualified engineer for specific guidance.
The AUIR3240S is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management strategies to ensure reliable operation. Consult Infineon's datasheet and application notes for guidance on high-temperature operation.
To troubleshoot overcurrent protection issues, check the sense resistor values, PCB layout, and input voltage. Ensure that the sense resistors are correctly sized and connected, and that the input voltage is within the recommended range. Also, verify that the overcurrent protection threshold is set correctly. If issues persist, consult Infineon's support team or a qualified engineer for assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AUIR3240S Overview

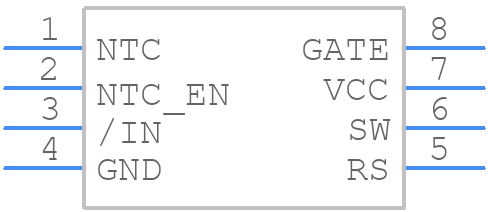

Use the download button to access the AUIR3240S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AUIR3,
or try a keyword search, such as MOSFET Drivers
