Infineon provides a reference design and layout guidelines in their application notes. It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
Infineon recommends following the IEC 61800-3 standard for EMC and using shielding, filtering, and grounding techniques to minimize EMI. Additionally, ensure proper PCB layout, component placement, and cable routing.
Monitor the device's temperature, voltage, and current to detect potential faults. Implement over-temperature protection, over-voltage protection, and over-current protection to prevent damage. Also, monitor the device's status registers and fault flags for diagnostic purposes.
Optimize the gate driver's performance by selecting the appropriate gate resistance, ensuring proper PCB layout, and minimizing parasitic inductance. Also, consider using a dedicated gate driver IC or a high-performance gate driver with built-in features like adaptive dead-time control and slew-rate control.
Handle the device with electrostatic discharge (ESD) precautions, such as using an ESD wrist strap or mat. Store the device in its original packaging or an anti-static bag to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AUIRB24427STR Overview

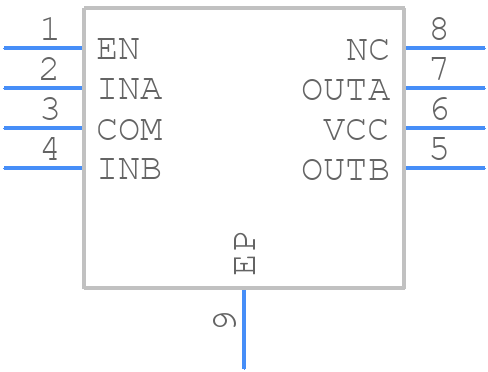

Use the download button to access the AUIRB24427STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AUIRB,
or try a keyword search, such as MOSFET Drivers
