AUIRF7769L2TR - Infineon

Description: INFINEON - AUIRF7769L2TR - MOSFET, AUTO, N-CH, 100V, DIRECTFETL8

Download AUIRF7769L2TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

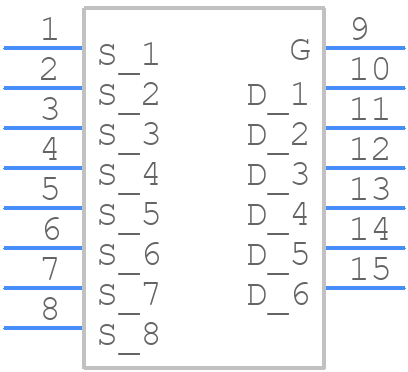

Symbol
AUIRF7769L2TR - Infineon - PCB symbol
click to zoom
PCB Footprints
AUIRF7769L2TR - Infineon PCB footprint - Other - Other - DIRECTFET L8
click to zoom
3D Models
AUIRF7769L2TR - Infineon - 3D model - Other - DIRECTFET L8
click to zoom

AUIRF7769L2TR Details

  • Manufacturer Part Number:

    AUIRF7769L2TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Mexico, Uk

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    260 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0035 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XBCC-N9

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    9

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    500 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

AUIRF7769L2TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AUIRF7769L2TR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management, PCB design, and layout guidelines, as well as implement adequate cooling mechanisms to prevent overheating.
  • The recommended gate drive voltage for the AUIRF7769L2TR is between 10V to 15V, with a maximum voltage of 20V.
  • Yes, the AUIRF7769L2TR can be used in a half-bridge configuration, but it's essential to ensure proper dead-time management and synchronization to prevent shoot-through currents.
  • To minimize EMI, use proper PCB layout techniques, such as separating high-frequency and low-frequency circuits, using shielding, and implementing EMI filters.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AUIRF7769L2TR Overview

Use the download button to access the AUIRF7769L2TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AUIRF, or try a keyword search, such as Power Field-Effect Transistors
