AVA-183P+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 500 - 18000 MHz, 50ohm

Download AVA-183P+ Model

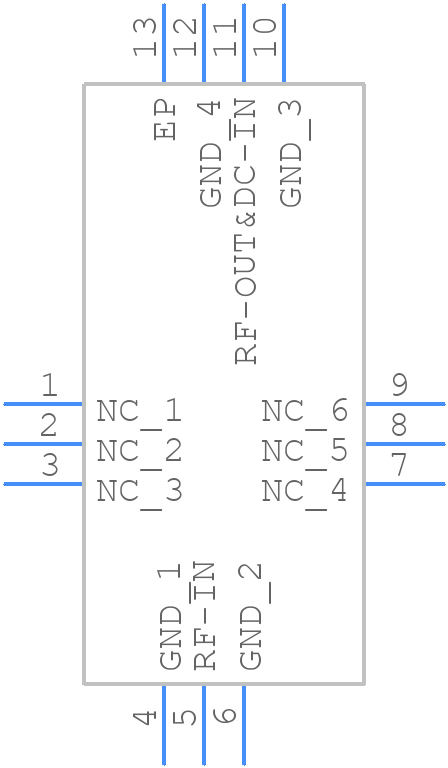

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AVA-183P+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom
3D Models
AVA-183P+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom

AVA-183P+ Details

  • Manufacturer Part Number:

    AVA-183P+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    9.2 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    54 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.25

AVA-183P+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. The input and output traces should be kept short and away from the amplifier's heat sink.
  • The AVA-183P+ is a self-biased amplifier, but it's essential to ensure the supply voltage is within the recommended range (±12V to ±15V) and the input signal is within the recommended input power range (-20 dBm to +10 dBm).
  • The AVA-183P+ can operate from -40°C to +85°C, but the amplifier's performance may degrade above +70°C. It's essential to ensure proper heat sinking and airflow to maintain optimal performance.
  • Yes, the AVA-183P+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful PCB design and layout to ensure proper signal balance and common-mode rejection.
  • Mini-Circuits recommends a 50Ω input and output impedance matching scheme using a π-network or a T-network topology to achieve optimal return loss and gain flatness.
