AVB 1,5/2/12 - BLOCK

Description: TRANSFORMER, ISO, 24VAC, 1.5VA; Power Rating:1.5VA; Secondary Voltages:2 x 12V; Current Rating:62mA; Isolation Transformer Primary Voltages:2 x 115V; Plug Type:-; Product Range:AVB Series RoHS Compliant: Yes

Download AVB 1,5/2/12 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AVB 1,5/2/12 model

Email notifications will be applied after download.

Send part feedback

Symbol

AVB 1,5/2/12 - BLOCK - PCB symbol

PCB Footprints

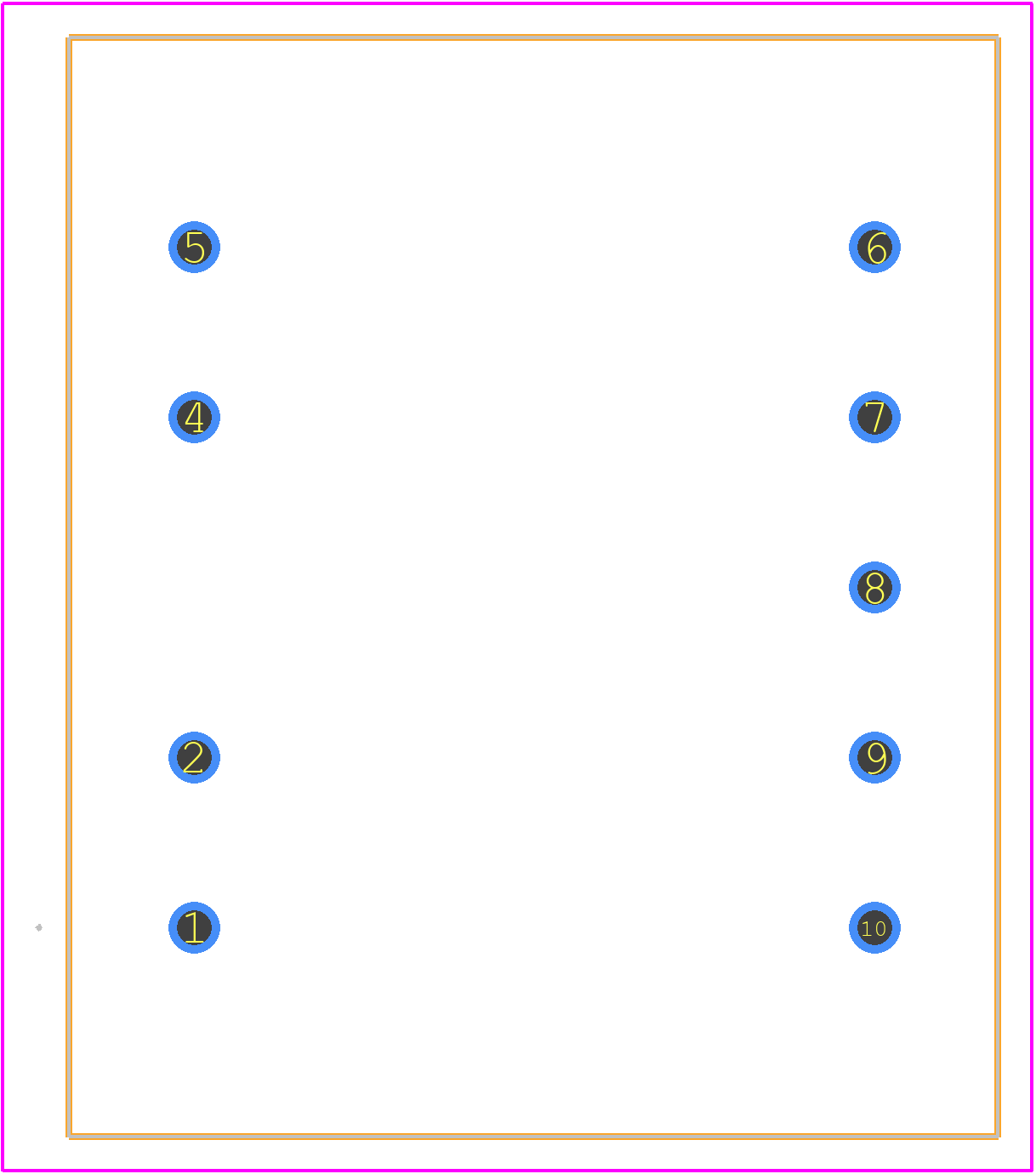

AVB 1,5/2/12 - BLOCK PCB footprint - Other - Other - AVB 1,5/2/12-1

3D Models

AVB 1,5/2/12 - BLOCK - 3D model - Other - AVB 1,5/2/12-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AVB 1,5/2/12
Part Number AVB 1,5/2/12
Manufacturer BLOCK
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - AVB 1,5/2/12-1
Released Date Mar 18, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AVB 1,5/2/12 Details

Manufacturer Part Number:
AVB 1,5/2/12
Manufacturer:
BlockMaster Blocks

Trust Checks

Expert Contribution

System Verified

Community Approved

AVB 1,5/2/12 Overview

Use the download button to access the AVB 1,5/2/12 schematic symbol, PCB footprint, and 3D model.
