AVB 1.5/2/24 - BLOCK

Description: PCB Transformer, Safety, Encapsulated Safety Isolating, 2 x 115V, 2 x 24V, 1.5 VA, 50Hz / 60Hz

Download AVB 1.5/2/24 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AVB 1.5/2/24 model

Email notifications will be applied after download.

Send part feedback

Symbol

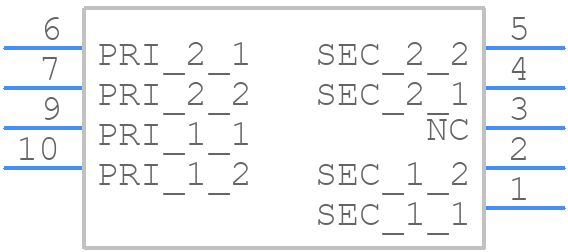

AVB 1.5/2/24 - BLOCK - PCB symbol

PCB Footprints

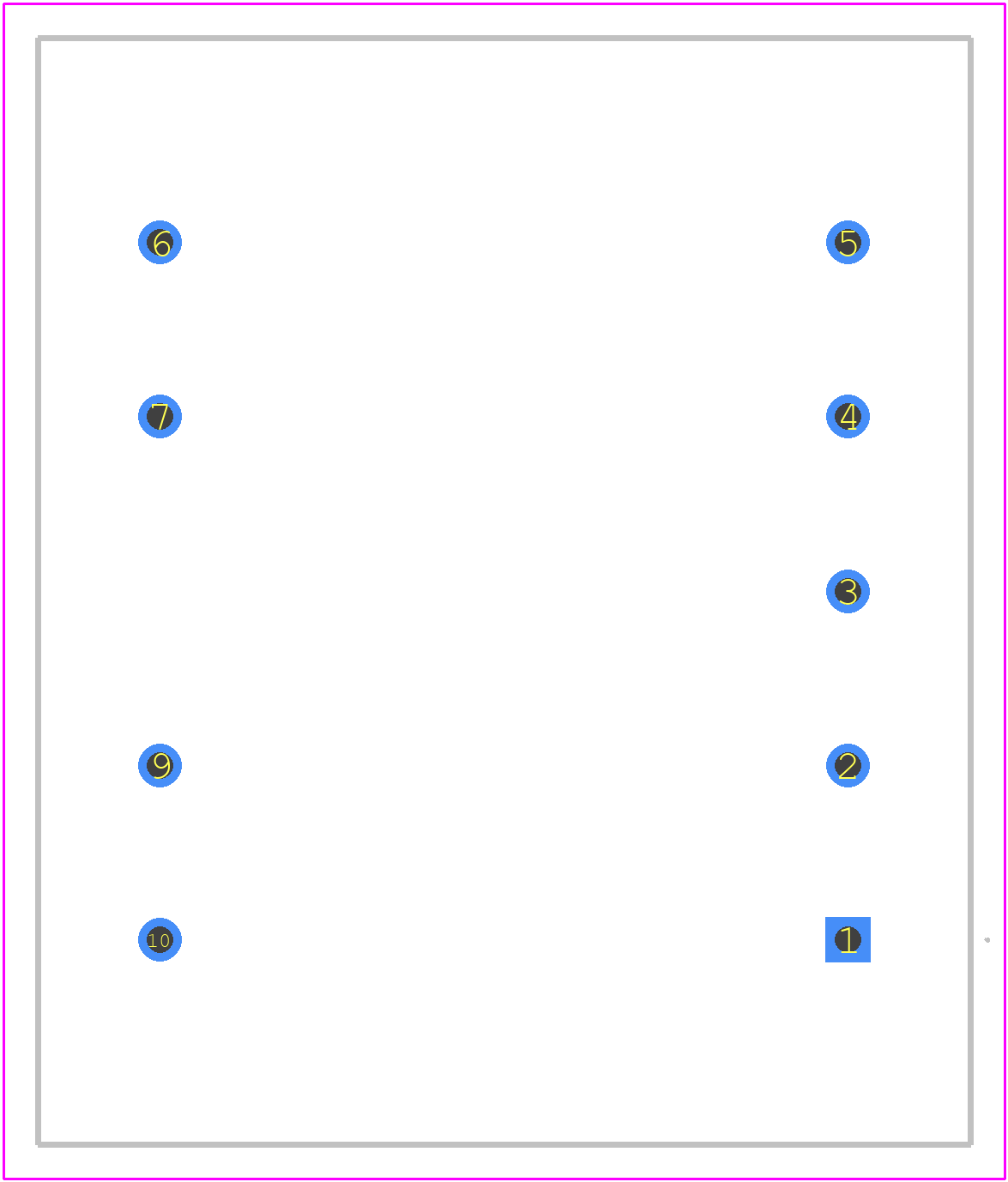

AVB 1.5/2/24 - BLOCK PCB footprint - Other - Other - AVB 1.5/2/24-1

3D Models

AVB 1.5/2/24 - BLOCK - 3D model - Other - AVB 1.5/2/24-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AVB 1.5/2/24
Part Number AVB 1.5/2/24
Manufacturer BLOCK
Pin Count 9
Part Category Transformer
Package Category Other
Footprint Name Other - AVB 1.5/2/24-1
Released Date Dec 29, 2023
Last Modified Date Dec 30, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

AVB 1.5/2/24 Details

Manufacturer Part Number:
AVB 1.5/2/24
Manufacturer:
BlockMaster Blocks

Trust Checks

Community Provided

System Verified

Community Approved

AVB 1.5/2/24 Overview

Use the download button to access the AVB 1.5/2/24 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AVB 1, or try a keyword search
