AVD85-48S05B-6L - Advanced Energy

AVD85-48S05B-6L Details

• Manufacturer Part Number:

  AVD85-48S05B-6L

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

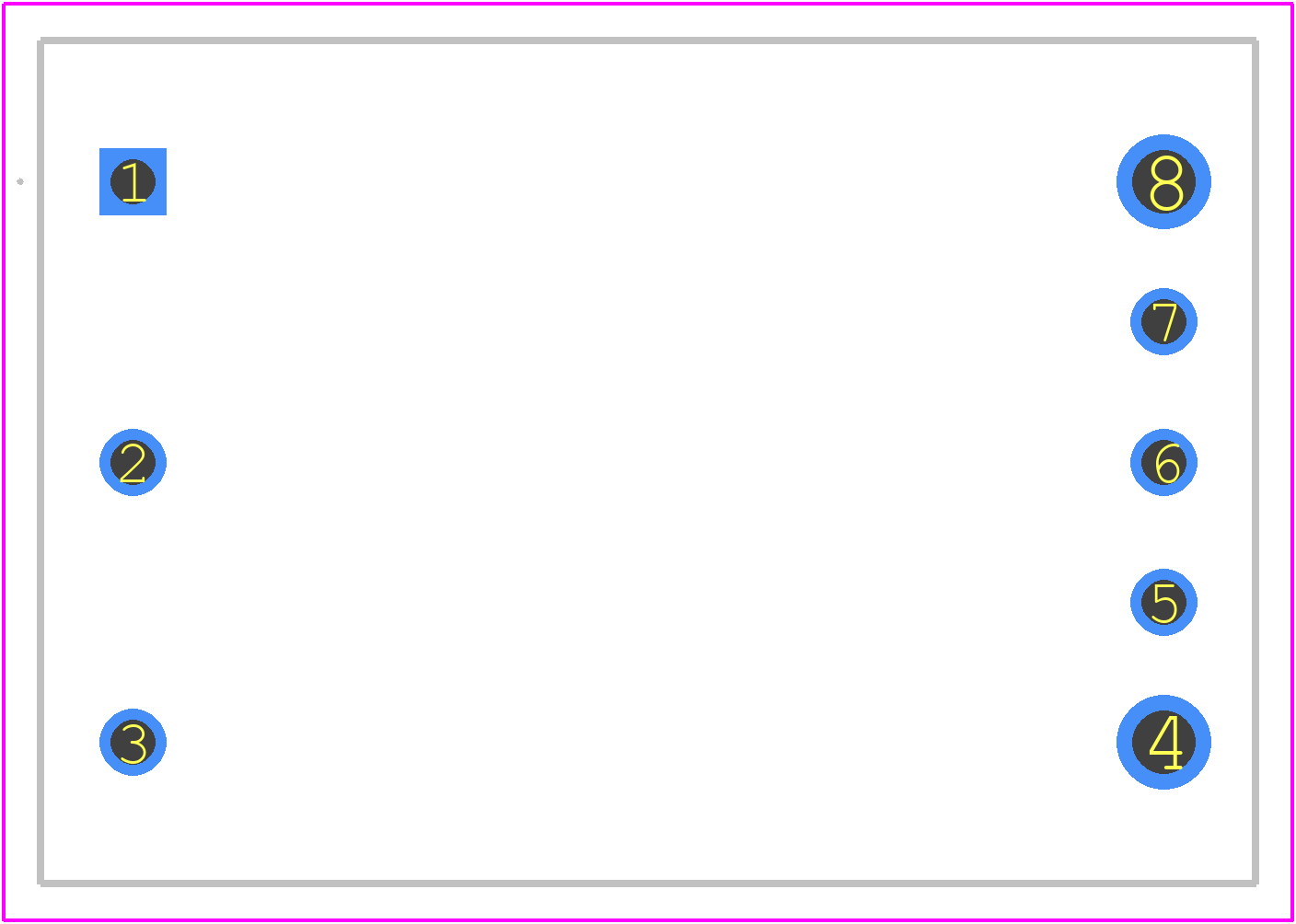

• Package Description:

  1/16 BRICK PACKAGE-8

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Advanced Energy Industries Inc

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  TUV, CE, UL, CUL, CE, UKCA

• Efficiency (Main Output):

  93.5%

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  36 V

• JESD-30 Code:

  R-XDMA-P8

• Length:

  33 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  17 A

• Output Voltage-Max:

  5.5 V

• Output Voltage-Min:

  4 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER VOLTAGE; OUTPUT OVER CURRENT; THERMAL

• Ripple Voltage (Main Out):

  0.04242 Vrms

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  DUAL

• Total Power Output-Max:

  85 W

• Trim/Adjustable Output:

  YES

• Width:

  22.9 mm
