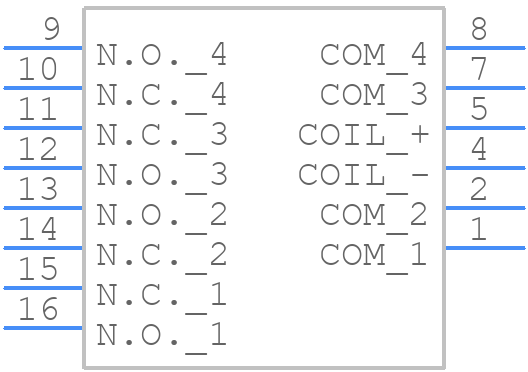

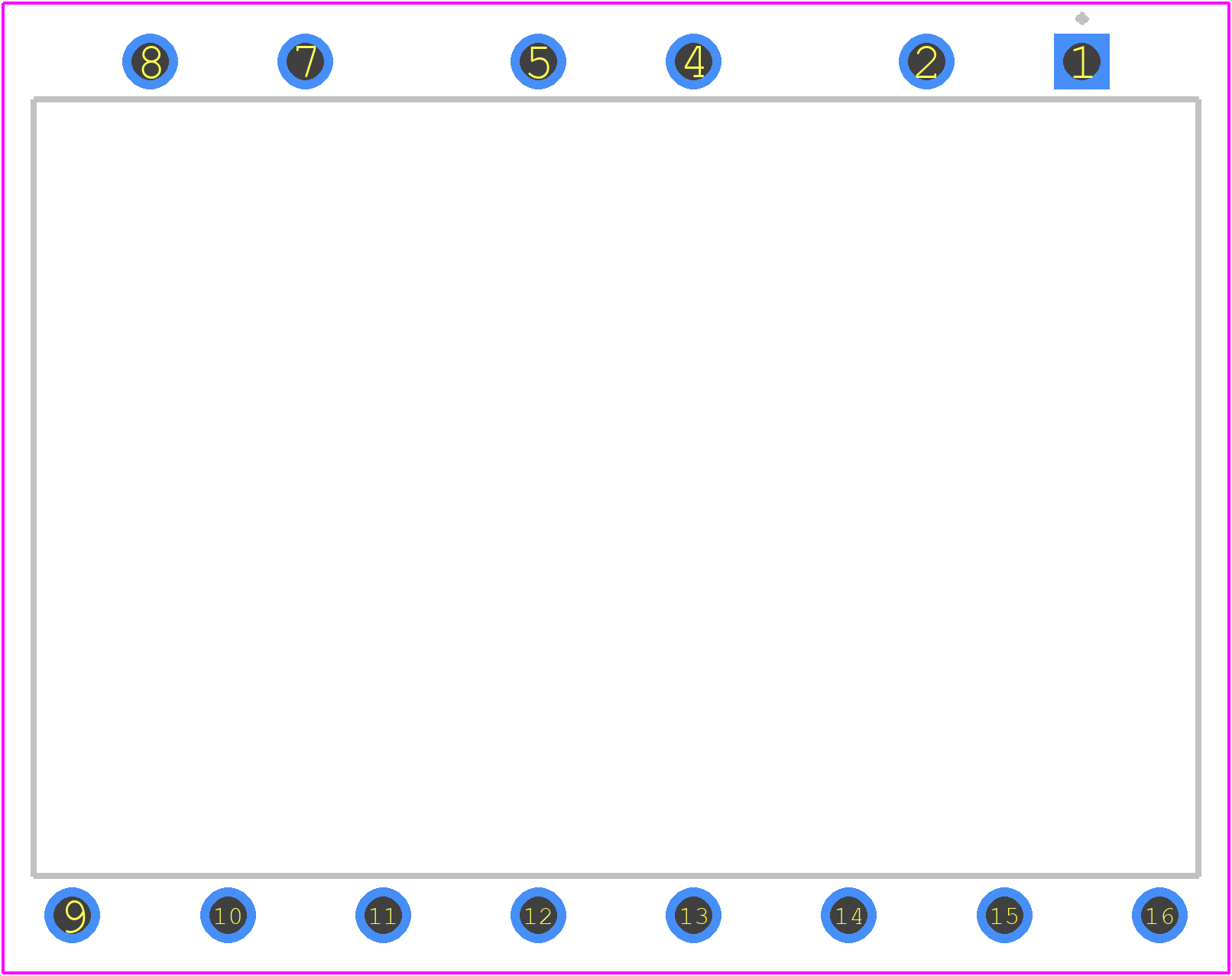

AW884260 - Panasonic

AW884260 Details

• Manufacturer Part Number:

  AW884260

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7.58

• Body Breadth:

  25.4 mm

• Body Height:

  10.9 mm

• Body Length or Diameter:

  38.1 mm

• Coil Current(DC)-Max:

  0.03 A

• Coil Operate Voltage(DC):

  19.2 V

• Coil Power:

  720 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  800 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  500VA@250VAC

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Power Rating R Load:

  150W@220VDC

• Contact (DC) Max Rating R Load:

  5A@220VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  Gold

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  14

• Operate Time:

  20 ms

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  38.1mm x 25.4mm x 10.9mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  4 FORM C

• Relay Function:

  4PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.138001016002032 inch

• Termination Type:

  SOLDER
