AWR1243FBIGABLQ1 - Texas Instruments

Description: 76-GHz to 81-GHz high-performance automotive MMIC

Download AWR1243FBIGABLQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AWR1243FBIGABLQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

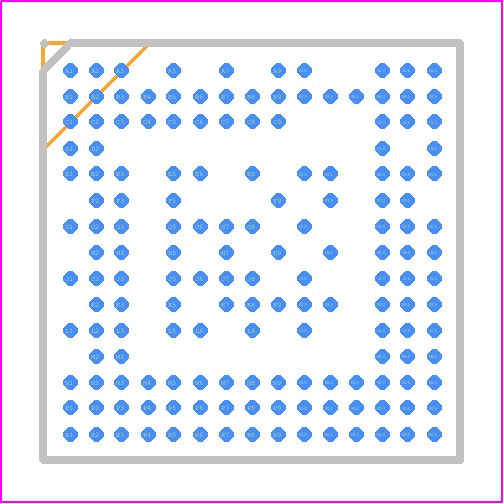

AWR1243FBIGABLQ1 - Texas Instruments PCB footprint - BGA - BGA - ABL0161A
click to zoom
3D Models
AWR1243FBIGABLQ1 - Texas Instruments - 3D model - BGA - ABL0161A
click to zoom

AWR1243FBIGABLQ1 Details

  • Manufacturer Part Number:

    AWR1243FBIGABLQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    10.4 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    10.4 mm

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.45-1.35V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA161,15X15,25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MMWAVE RADAR SENSOR MODULE

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Surface Mount:

    YES

  • Technology:

    RFCMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

AWR1243FBIGABLQ1 Frequently Asked Questions (FAQs)

  • The maximum range of the AWR1243FBIGABLQ1 is approximately 300 meters, depending on the environment and target size.
  • The AWR1243FBIGABLQ1 uses a combination of frequency modulation and pulse compression to mitigate multipath interference. Additionally, the device's built-in signal processing algorithms help to reduce the effects of multipath.
  • Yes, the AWR1243FBIGABLQ1 can be used for gesture recognition applications. The device's high-resolution range and velocity data enable accurate detection of gestures and movements.
  • The power consumption of the AWR1243FBIGABLQ1 is approximately 1.5W in active mode and 10uW in standby mode, making it suitable for battery-powered applications.
