AWR2243ABGABLQ1 - Texas Instruments

Description: RF Transceiver 76-GHz to 81-GHz automotive second-generation high-performance MMIC 161-FC/CSP -40 to 140

Download AWR2243ABGABLQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AWR2243ABGABLQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

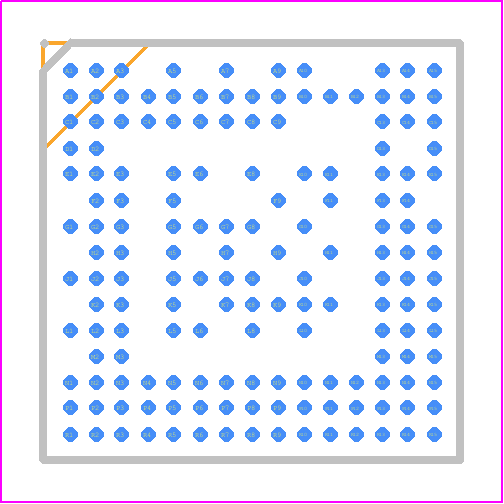

AWR2243ABGABLQ1 - Texas Instruments PCB footprint - BGA - BGA - ABL0161A_2021
click to zoom
3D Models
AWR2243ABGABLQ1 - Texas Instruments - 3D model - BGA - ABL0161A_2021
click to zoom

AWR2243ABGABLQ1 Details

  • Manufacturer Part Number:

    AWR2243ABGABLQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Number of transmitters : 3; Number of receivers : 4

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    161

  • Operating Frequency-Max:

    81000 MHz

  • Operating Frequency-Min:

    76000 MHz

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA161,15X15,25

  • Power Supplies:

    1.8/3.3 V

  • RF/Microwave Device Type:

    RF TRANSCEIVER

  • Screening Level:

    AEC-Q100

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

AWR2243ABGABLQ1 Frequently Asked Questions (FAQs)

  • The maximum range of the AWR2243ABGABLQ1 is approximately 100 meters, depending on the environment and target size.
  • The AWR2243ABGABLQ1 uses a combination of frequency modulation and pulse compression to mitigate multipath interference. Additionally, the device's built-in signal processing algorithms help to reduce the effects of multipath.
  • Yes, the AWR2243ABGABLQ1 can be used for gesture recognition applications. The device's high-resolution range and velocity data enable accurate detection of gestures and movements.
  • The power consumption of the AWR2243ABGABLQ1 is typically around 1.5W, depending on the operating mode and frequency of operation.
  • The AWR2243ABGABLQ1 has built-in noise reduction and interference mitigation techniques, including adaptive thresholding and filtering. Additionally, the device's signal processing algorithms help to reduce the effects of noise and interference.
