Texas Instruments provides a recommended PCB layout and design guide in the AWR2243APBGABLRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance.
The AWR2243APBGABLRQ1 requires calibration for optimal performance. Texas Instruments provides a calibration guide in the device's documentation, which includes procedures for gain calibration, phase calibration, and other adjustments to ensure accurate radar measurements.
The AWR2243APBGABLRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as using thermal vias, heat sinks, and thermal interface materials, and designing the PCB to minimize thermal resistance.
The AWR2243APBGABLRQ1 can be interfaced with a microcontroller or processor using a serial peripheral interface (SPI) or a quadrature amplitude modulation (QAM) interface. Texas Instruments provides example code and documentation for popular microcontrollers and processors, and recommends using a SPI interface for most applications.
The AWR2243APBGABLRQ1 has a built-in antenna, and the radiation pattern is dependent on the specific application and use case. Texas Instruments provides antenna design guidelines and radiation pattern data in the device's documentation, and recommends using simulation tools and antenna design software to optimize antenna performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AWR2243APBGABLRQ1 Overview

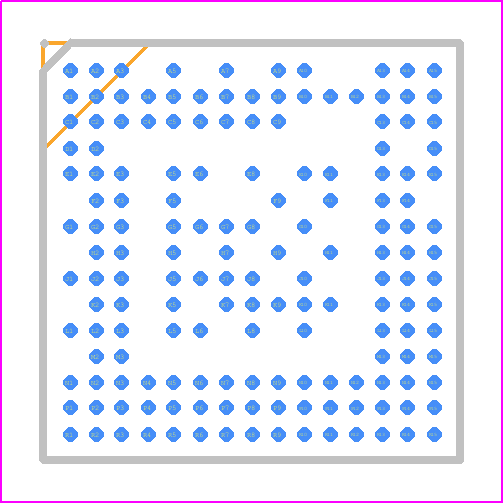

Use the download button to access the AWR2243APBGABLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AWR22,
or try a keyword search, such as Other RF/Microwave Devices
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
