AX-SFAZ-1-01-TB05 - onsemi

Description: RF Transceiver SoC, Sigfox™ Verified RCZ4, Ultra-low Power

Download AX-SFAZ-1-01-TB05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

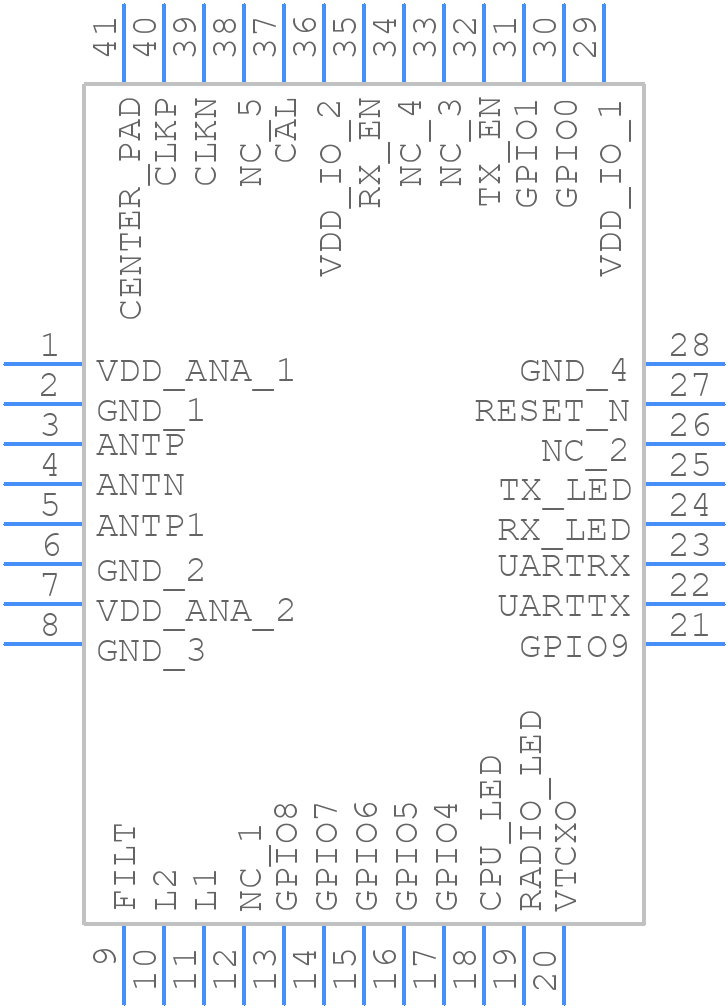

AX-SFAZ-1-01-TB05 - onsemi - PCB symbol
click to zoom
PCB Footprints

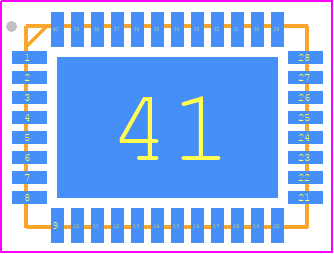

AX-SFAZ-1-01-TB05 - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 7x5, 0.5P CASE 485EG ISSUE A
click to zoom
3D Models
AX-SFAZ-1-01-TB05 - onsemi - 3D model - Quad Flat No-Lead - QFN40 7x5, 0.5P CASE 485EG ISSUE A
click to zoom

AX-SFAZ-1-01-TB05 Details

  • Manufacturer Part Number:

    AX-SFAZ-1-01-TB05

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • Manufacturer Package Code:

    485EG

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2X.27,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AX-SFAZ-1-01-TB05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AX-SFAZ-1-01-TB05 can be found in the application note AN5191, which provides guidelines for PCB design, component placement, and thermal management to ensure optimal performance and reliability.
  • The AX-SFAZ-1-01-TB05 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink or thermal ground plane.
  • The AX-SFAZ-1-01-TB05 is rated for operation from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • Yes, the AX-SFAZ-1-01-TB05 is qualified for use in high-reliability and automotive applications. It meets the requirements of AEC-Q101 and is manufactured using a process that is compliant with IATF 16949:2016.
  • onsemi provides a troubleshooting guide in the application note AN5191, which covers common issues and their possible causes. Additionally, engineers can contact onsemi's technical support team for assistance with troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX-SFAZ-1-01-TB05 Overview

Use the download button to access the AX-SFAZ-1-01-TB05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX-SF, or try a keyword search, such as Other Telecom ICs
