AX-SIP-SFEU-1-01-TX30 - onsemi

Description: ON SEMICONDUCTOR - AX-SIP-SFEU-1-01-TX30 - Transceiver Module, PSK, 100bps, 868.13MHz, -125 dBm, 2.1V to 3.6V Supply, SPI

Download AX-SIP-SFEU-1-01-TX30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

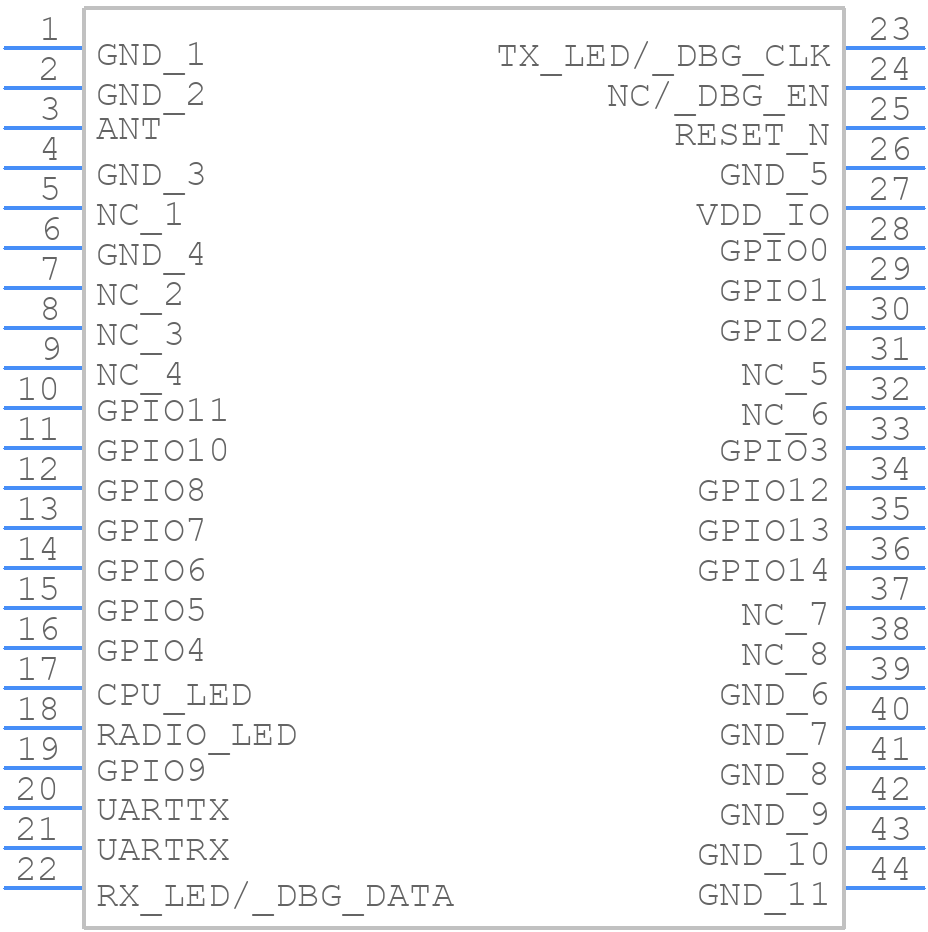

AX-SIP-SFEU-1-01-TX30 - onsemi - PCB symbol
click to zoom
PCB Footprints
AX-SIP-SFEU-1-01-TX30 - onsemi PCB footprint - Other - Other - AX-SIP-SFEU-1-01-TX30-5
click to zoom
3D Models
AX-SIP-SFEU-1-01-TX30 - onsemi - 3D model - Other - AX-SIP-SFEU-1-01-TX30-5
click to zoom

AX-SIP-SFEU-1-01-TX30 Details

  • Manufacturer Part Number:

    AX-SIP-SFEU-1-01-TX30

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SIP-44

  • Manufacturer Package Code:

    127EU

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-XBCC-N44

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVBCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.996 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT
