Abracon recommends following the recommended PCB layout and land pattern guidelines provided in the datasheet or application notes to ensure optimal performance, minimal signal loss, and reduced EMI. A well-designed PCB layout can help minimize parasitic inductance and capacitance, ensuring the oscillator operates within its specified frequency range.
The AX3DBF1-200.0000 oscillator's frequency stability is specified over a temperature range of -40°C to +85°C. While the datasheet provides a general idea of the frequency stability, it's essential to consult Abracon's application notes or contact their technical support for more detailed information on frequency stability over temperature, as it may vary depending on the specific application and operating conditions.
The recommended drive level for the AX3DBF1-200.0000 oscillator is typically specified in the datasheet. However, it's crucial to understand that exceeding the recommended drive level can lead to increased power consumption, heat generation, and potentially affect the oscillator's frequency stability and overall performance. It's recommended to consult Abracon's application notes or technical support for guidance on drive level optimization.
The AX3DBF1-200.0000 oscillator's output waveform can impact the performance of downstream components, such as PLLs, dividers, or other clocking circuits. The oscillator's output waveform, including its rise and fall times, amplitude, and jitter, can affect the downstream components' ability to accurately track the clock signal. It's essential to consider the oscillator's output waveform characteristics when designing the overall system architecture.
The AX3DBF1-200.0000 oscillator, like any other clocking component, can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it's essential to follow proper PCB design practices, such as using ground planes, shielding, and decoupling capacitors. Additionally, consider using EMI-reducing components, such as ferrite beads or common-mode chokes, to mitigate EMI and RFI effects.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AX3DBF1-200.0000 Overview

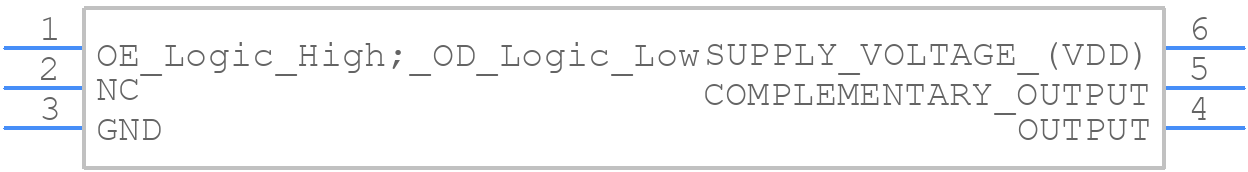

Use the download button to access the AX3DBF1-200.0000 schematic symbol, PCB footprint, and 3D model.
