AX500-PQG208M - Microsemi Corporation

AX500-PQG208M Details

• Manufacturer Part Number:

  AX500-PQG208M

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

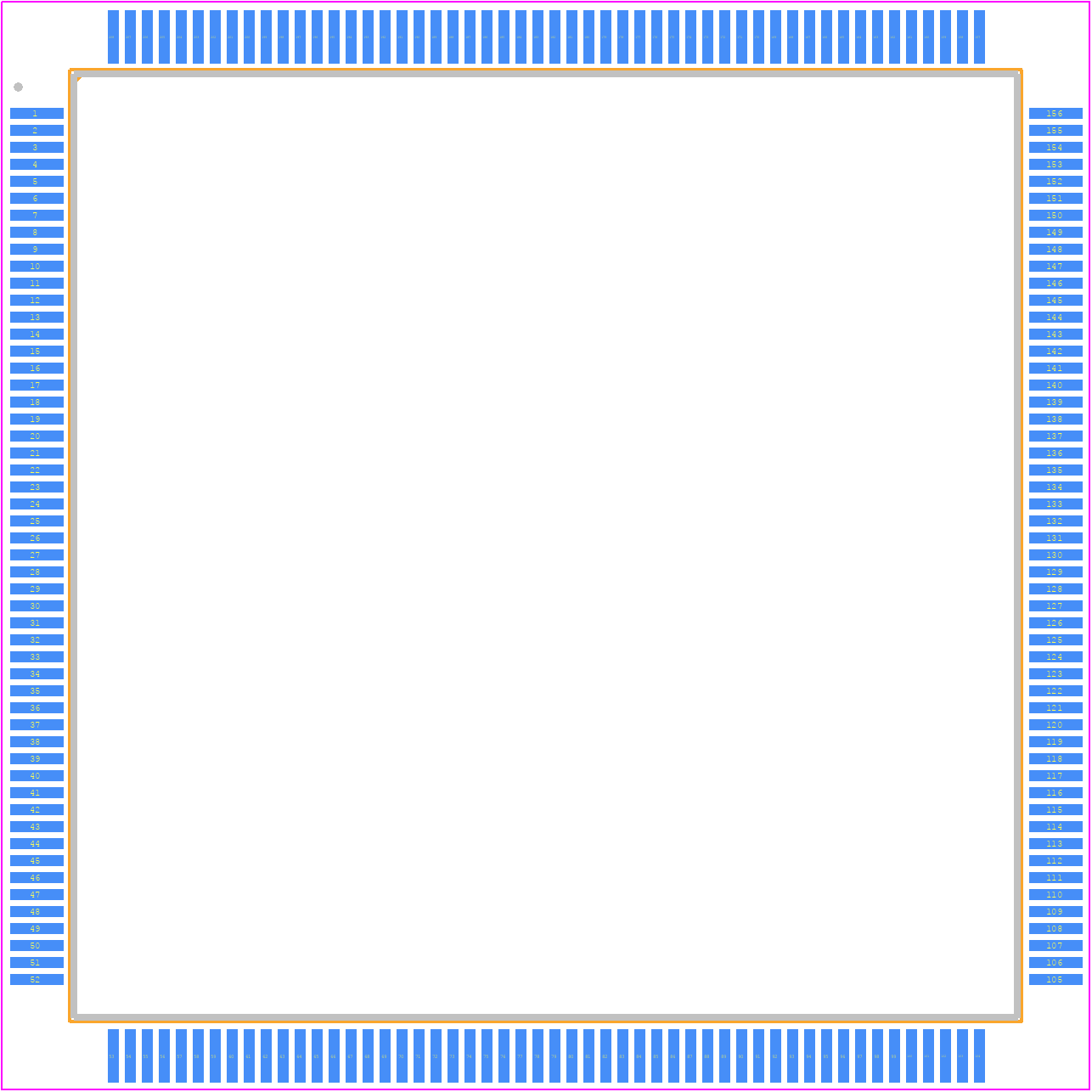

• Package Description:

  0.50 MM PITCH, ROHS COMPLIANT, PLASTIC, QFP-208

• ECCN Code:

  3A001.a.2.c

• HTS Code:

  8542.31.00.60

• Manufacturer:

  Microsemi Corporation (now Microchip)

• Additional Feature:

  500000 SYSTEM GATES AVAILABLE

• Clock Frequency-Max:

  649 MHz

• Combinatorial Delay of a CLB-Max:

  0.99 ns

• JESD-30 Code:

  S-PQFP-G208

• JESD-609 Code:

  e3

• Length:

  28 mm

• Moisture Sensitivity Level:

  3

• Number of CLBs:

  5376

• Number of Equivalent Gates:

  500000

• Number of Inputs:

  336

• Number of Logic Cells:

  8064

• Number of Outputs:

  336

• Number of Terminals:

  208

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  5376 CLBS, 500000 GATES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP208,1.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• Peak Reflow Temperature (Cel):

  245

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883 Class B

• Seated Height-Max:

  4.1 mm

• Supply Voltage-Max:

  1.575 V

• Supply Voltage-Min:

  1.425 V

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  28 mm
