A good PCB layout is crucial for the AX5045-1-TW30's performance. It's recommended to follow the layout guidelines provided in the application note AND9405/D, which includes tips on component placement, grounding, and routing.
To minimize power consumption, configure the AX5045-1-TW30 to operate in the lowest possible frequency band and adjust the transmit power to the minimum required level. Additionally, use the device's built-in power-saving features, such as the sleep mode and automatic power control.
The AX5045-1-TW30 is rated for operation from -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
Yes, the AX5045-1-TW30 can be used with an external LNA to improve the receiver's sensitivity. However, ensure that the LNA is properly matched to the AX5045-1-TW30's input impedance and that the overall system noise figure is optimized.
To troubleshoot issues, use a combination of tools such as a spectrum analyzer, oscilloscope, and logic analyzer to analyze the device's output and input signals. Additionally, consult the AX5045-1-TW30's datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AX5045-1-TW30 Overview

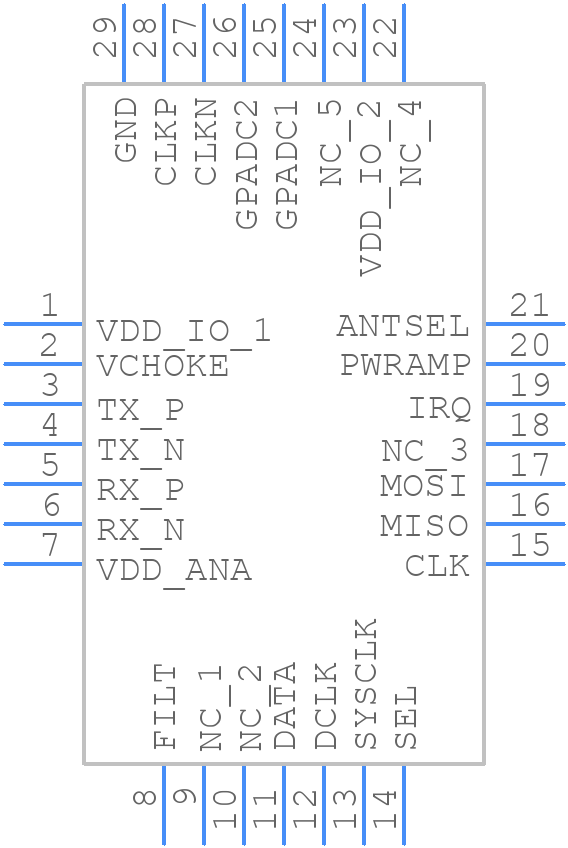

Use the download button to access the AX5045-1-TW30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AX504,
or try a keyword search, such as Other Telecom ICs
