AX5DAF1-250.0000C - ABRACON

Description: OSC XO 250MHZ 3.3V LVDS

Download AX5DAF1-250.0000C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

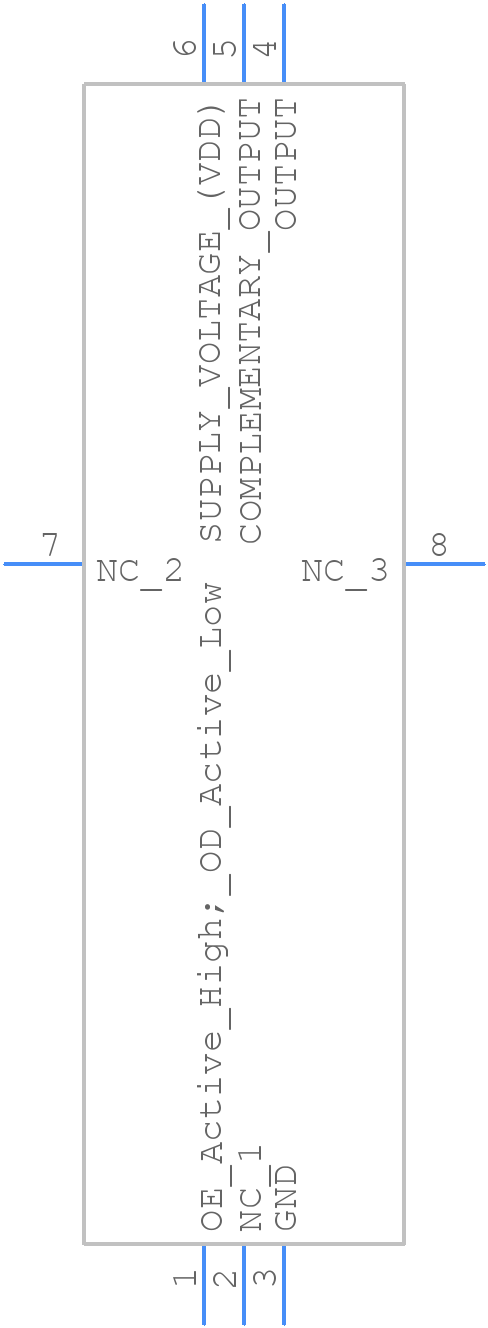

Symbol
AX5DAF1-250.0000C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX5DAF1-250.0000C - ABRACON PCB footprint - Other - Other - AX5
click to zoom
3D Models
AX5DAF1-250.0000C - ABRACON - 3D model - Other - AX5
click to zoom

AX5DAF1-250.0000C Details

  • Manufacturer Part Number:

    AX5DAF1-250.0000C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TAPE

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    250 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Physical Dimension:

    5.0mm x 3.2mm x 1.4mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX5DAF1-250.0000C Frequently Asked Questions (FAQs)

  • The operating temperature range of the AX5DAF1-250.0000C is -40°C to +85°C.
  • Yes, the AX5DAF1-250.0000C is designed for high-reliability applications and is built with a ruggedized design to withstand harsh environments.
  • The typical start-up time for the AX5DAF1-250.0000C is around 2-5 milliseconds.
  • Yes, the AX5DAF1-250.0000C is AEC-Q200 qualified, making it suitable for use in automotive applications.
  • Abracon recommends following the recommended PCB layout guidelines provided in the datasheet, which include using a ground plane, minimizing trace lengths, and avoiding noise sources near the oscillator.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX5DAF1-250.0000C Overview

Use the download button to access the AX5DAF1-250.0000C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX5DA, or try a keyword search, such as XO
