Abracon recommends following the recommended PCB layout and land pattern provided in the datasheet or application notes to ensure optimal performance, minimal signal loss, and reduced EMI. A well-designed PCB layout can help minimize parasitic inductance and capacitance, ensuring the oscillator operates within its specified frequency range.
Proper termination is crucial for the oscillator's performance. Ensure that the output is terminated with a 50-ohm load, and the input is terminated with a 1-kohm resistor to prevent overdriving. Additionally, use a 0.01-uF capacitor in series with the output to filter out any high-frequency noise.
To ensure stable operation, decouple the power supply lines with a 10-uF capacitor in parallel with a 0.1-uF capacitor, placed as close to the oscillator as possible. This helps to filter out noise and ripple on the power supply lines, ensuring a stable clock signal.
To minimize EMI and RFI, ensure that the oscillator is placed away from noisy components and traces. Use a shielded enclosure, and consider adding EMI filters or absorbers to the PCB design. Additionally, follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding parallel traces that can act as antennas.
The AX5DBF1-1000.0000C operates over a temperature range of -40°C to +85°C. Temperature changes can affect the oscillator's frequency stability and accuracy. Ensure that the oscillator is operated within its specified temperature range, and consider using temperature compensation techniques or components to maintain frequency stability over temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AX5DBF1-1000.0000C Overview

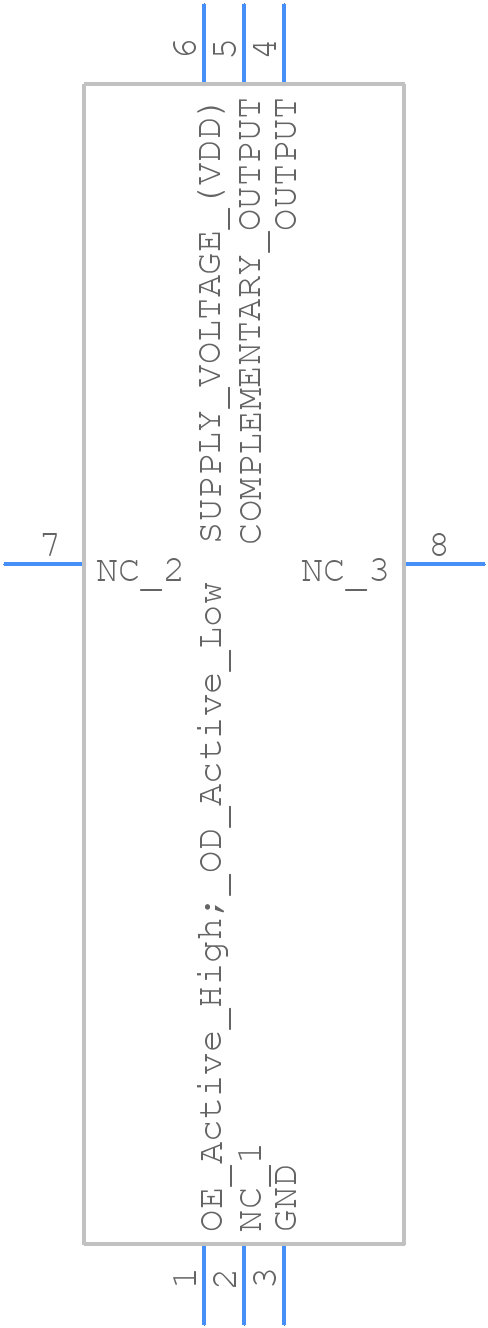

Use the download button to access the AX5DBF1-1000.0000C schematic symbol, PCB footprint, and 3D model.
